Vehicle-specific A-pillar ditch lighting for 2025–present (Gen 2) Rivian R1T and R1S. The Team 1EV system combines stainless-steel hood-hinge brackets with Morimoto 4Banger LED pods and your choice of wireless, in-cab toggle, or DIY wiring.
Important Gen 2 power requirement: Gen 2 vehicles require the lighting power wire to be routed into the cabin/under-dash area. The required Gen 2 power harness is included with this listing. Do not power the lighting load from the under-hood low-voltage battery.
Choose the complete configuration
- Control: wireless key-fob relay harness, in-cab toggle-switch harness, or lights/connectors only for custom wiring
- Beam: Spot, Combo, or SAE Wide
- Color: White or Yellow/Amber
- Output: NCS 20W or HBX 42W
Fitment and mounting
- 2025–present Rivian R1T (Gen 2)
- 2025–present Rivian R1S (Gen 2)
- Laser-cut 304 stainless-steel A-pillar brackets
- Powder-coated finish and stainless-steel hardware
- Uses existing hood-hinge mounting points
- Required Gen 2 power harness is included
- Power wiring must be routed into the cabin/under-dash area
Control options

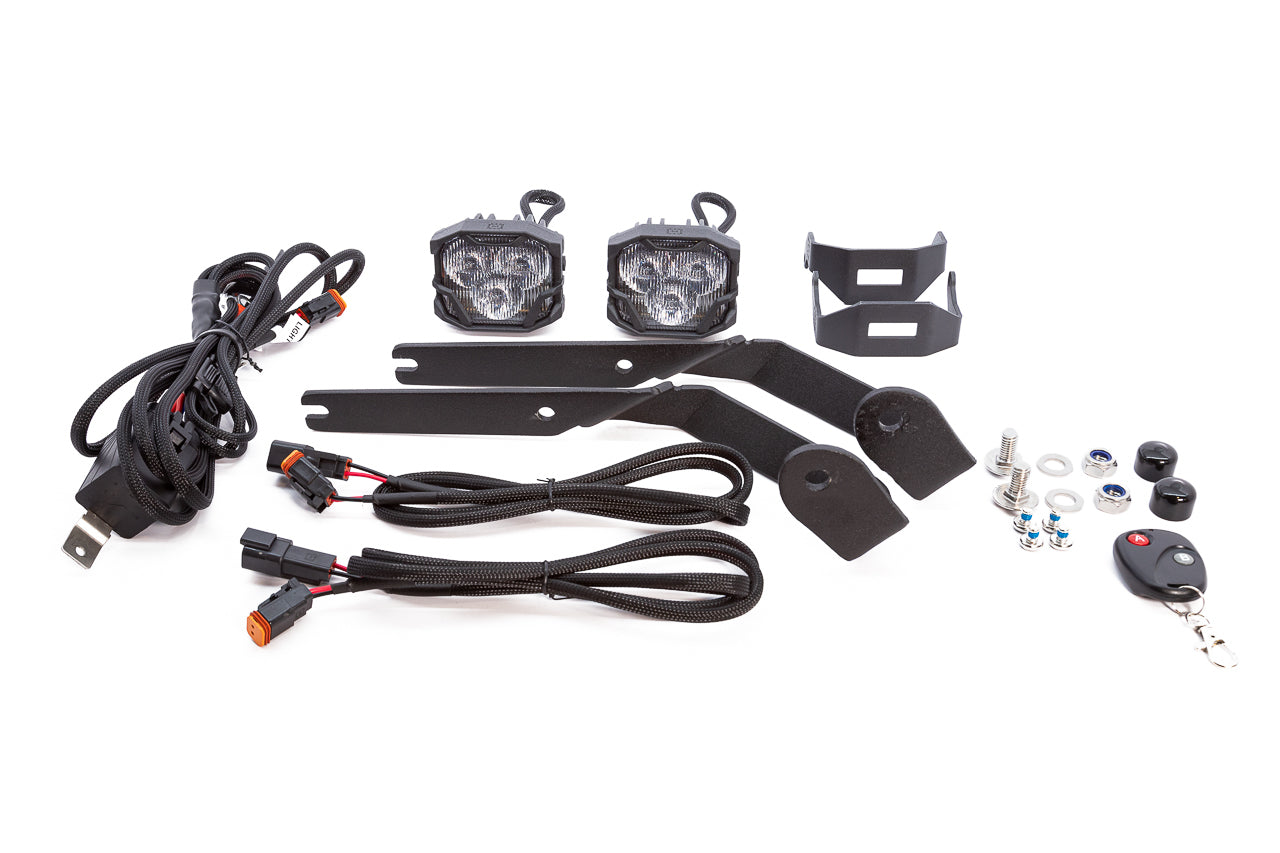

Wireless key fob
- One-button RF remote control
- Required Gen 2 power harness included
- Power connection is routed into the cabin/under-dash area
Toggle switch
- Traditional in-cab push-button control
- Requires routing wiring into the cabin
- Includes a Team 1EV stainless-steel 3/4-inch switch bracket
DIY wiring
The required Gen 2 power harness is included with this listing. Lights/connectors-only configurations still do not include the main power relay harness or switch; they include two mating Deutsch connector sets, seals, and pins for a custom wiring configuration.

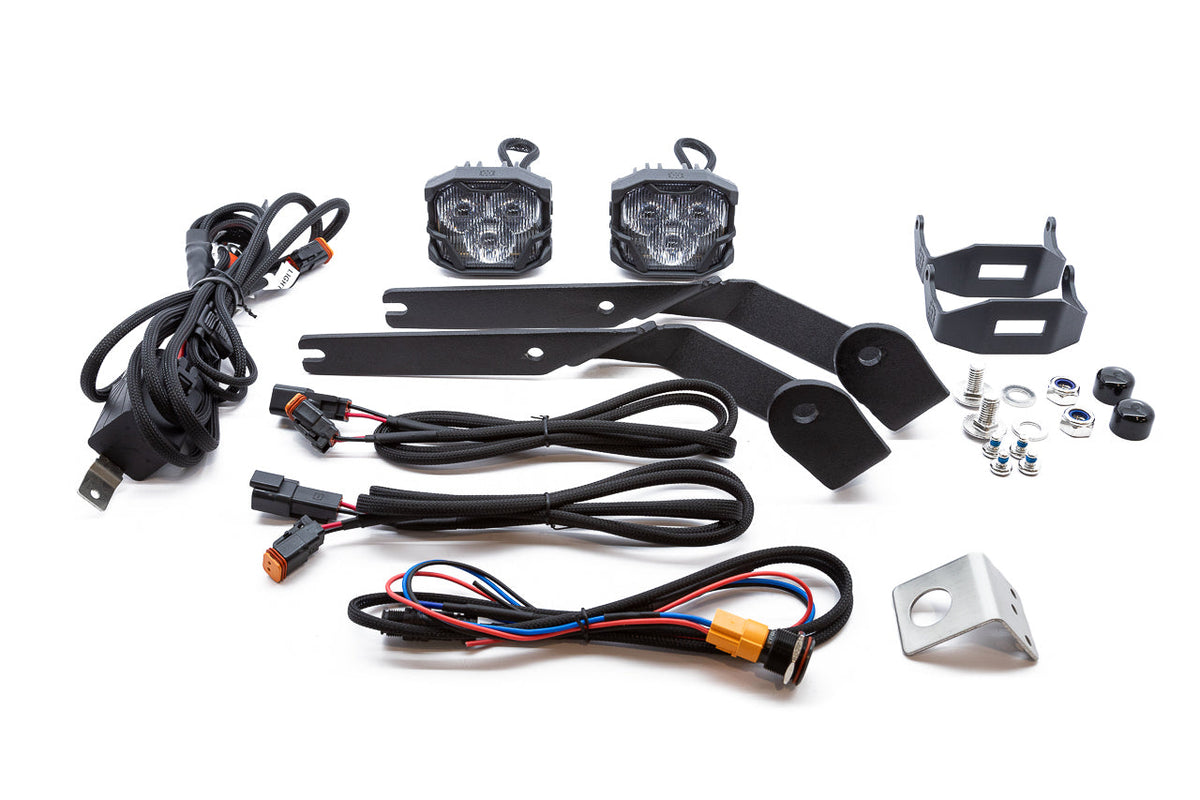

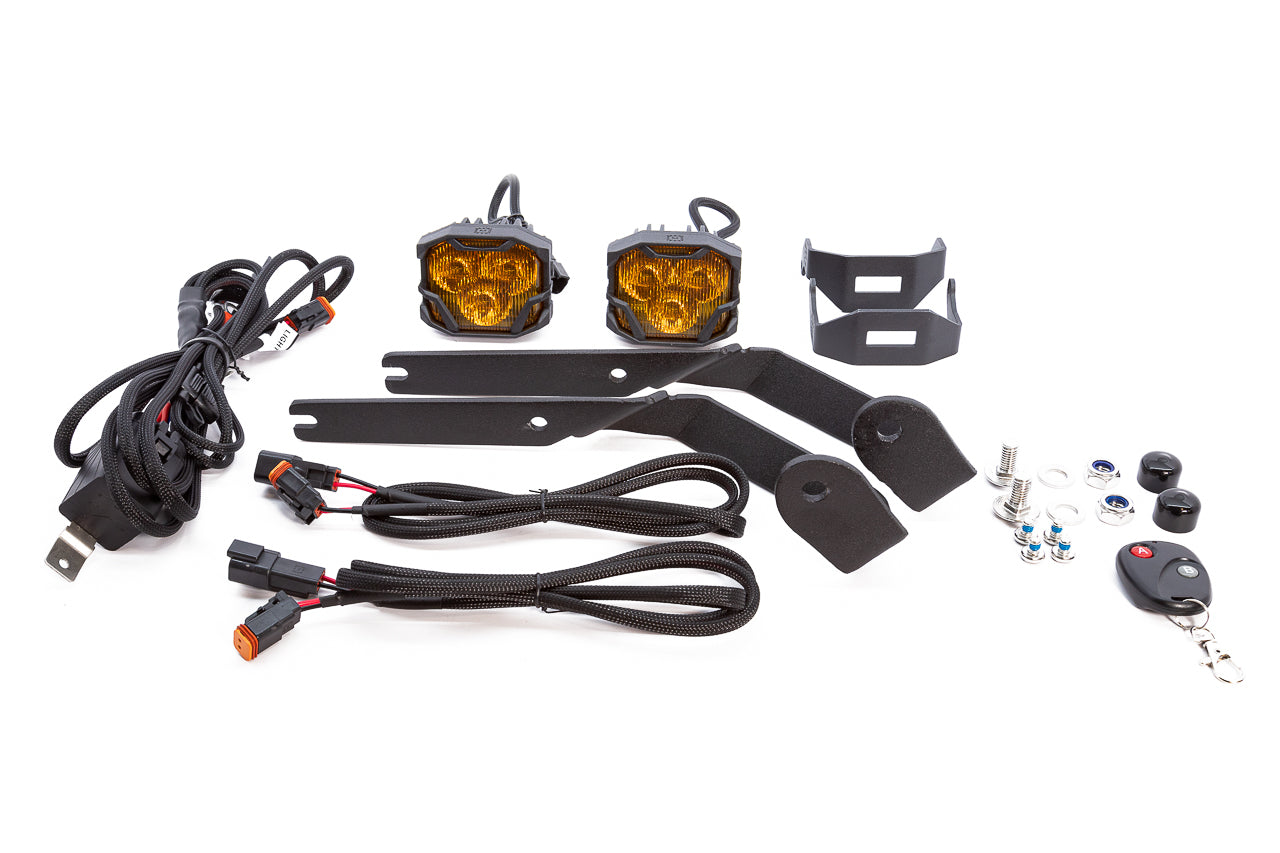

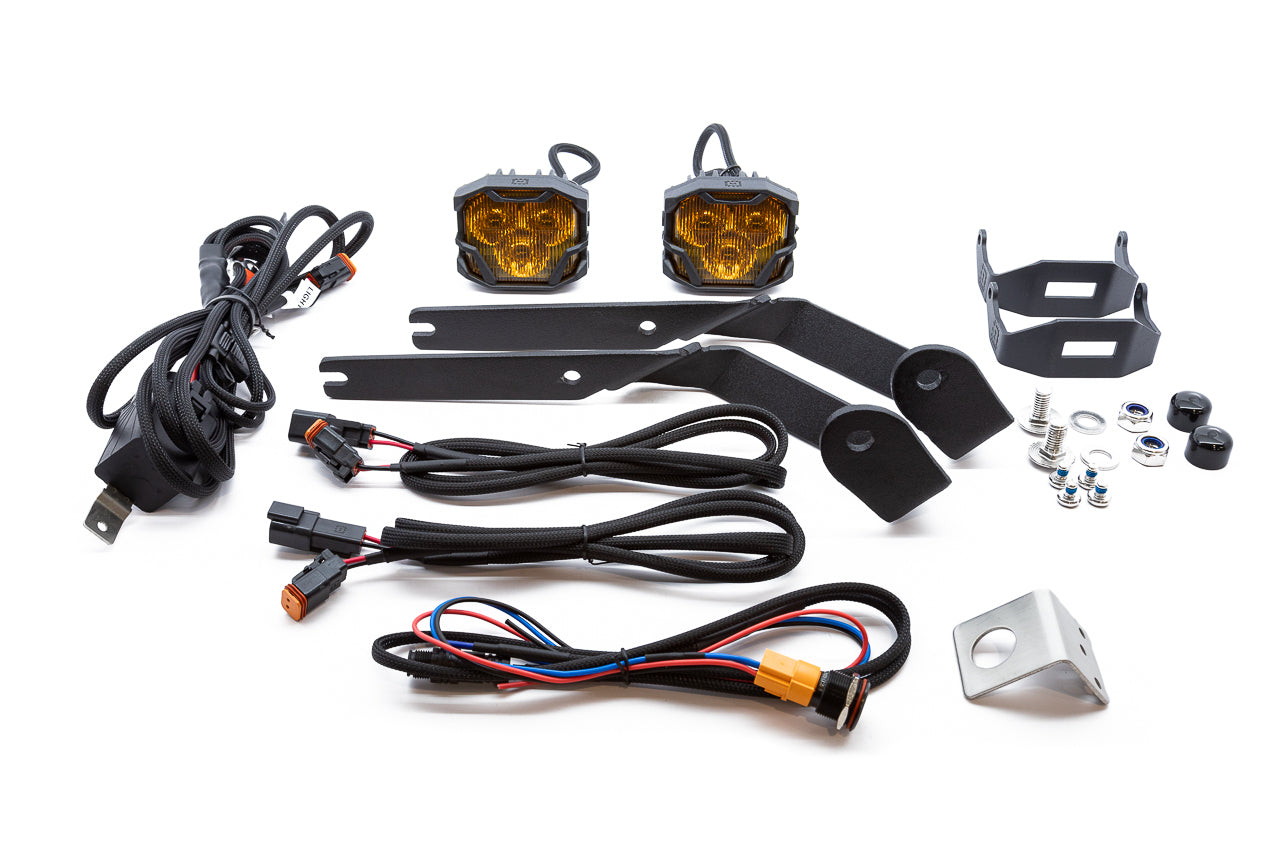

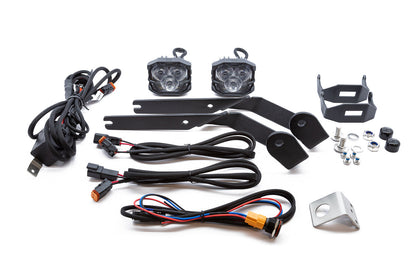

Kit contents
- Two Morimoto 4Banger LED pods in the selected specification
- Two Team 1EV Rivian A-pillar brackets
- Required Gen 2 power harness
- Stainless-steel bolts and cable hardware
- Black hardware caps
- Selected wiring/control package
Pod specifications
- Input voltage: 9–18V DC
- Dimensions: 82 mm wide × 67 mm high × 60 mm deep
- NCS output: 20W, 1.5A
- HBX output: 42W, 3.2A
- Powder-coated die-cast aluminum housing
- Weather-resistant sealed construction
Beam selection
- SAE Wide: broad, controlled near-field illumination
- Combo: blended width and medium-range distance
- Spot: narrow long-distance illumination
White output is intended for general visibility; Yellow/Amber is intended to improve contrast in rain, snow, fog, and dust. Check local laws before using auxiliary lights on public roads.
Product overview
Wireless kit installation overview
Installation video demonstrates the product system. Follow the Gen 2 power-routing requirements above for 2025–present vehicles.
