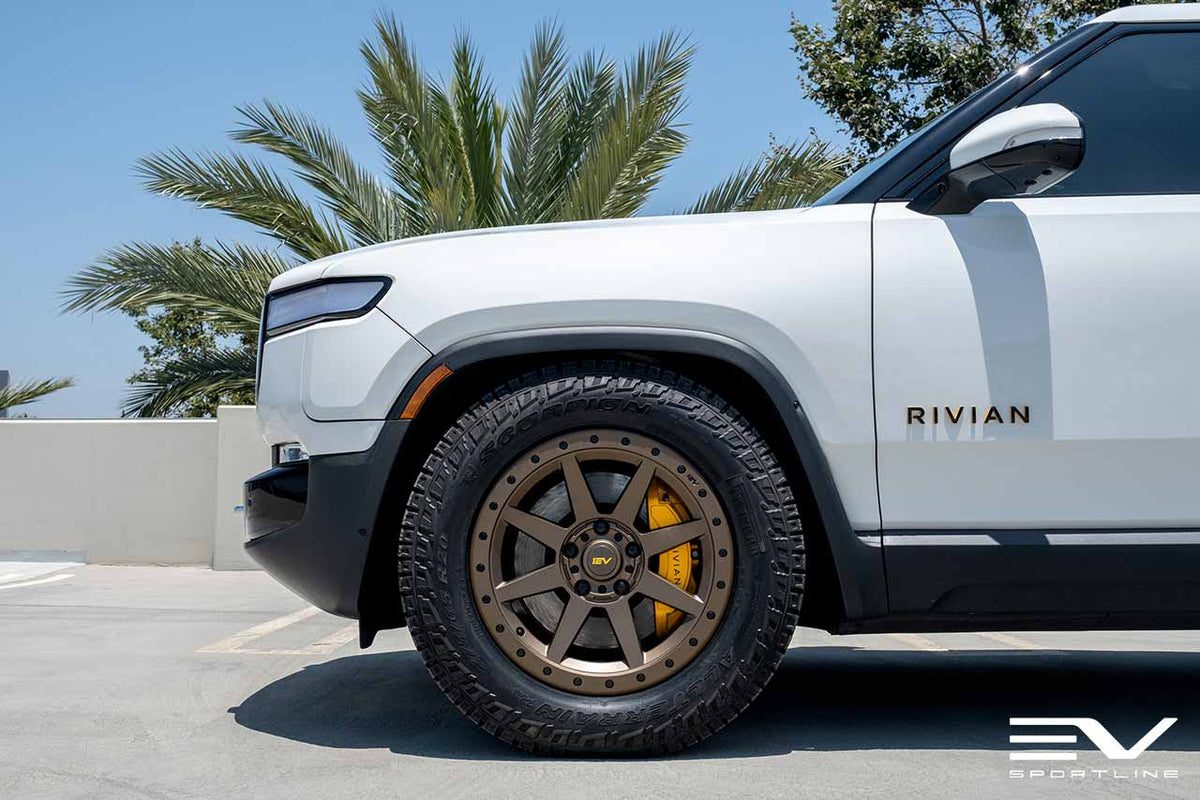

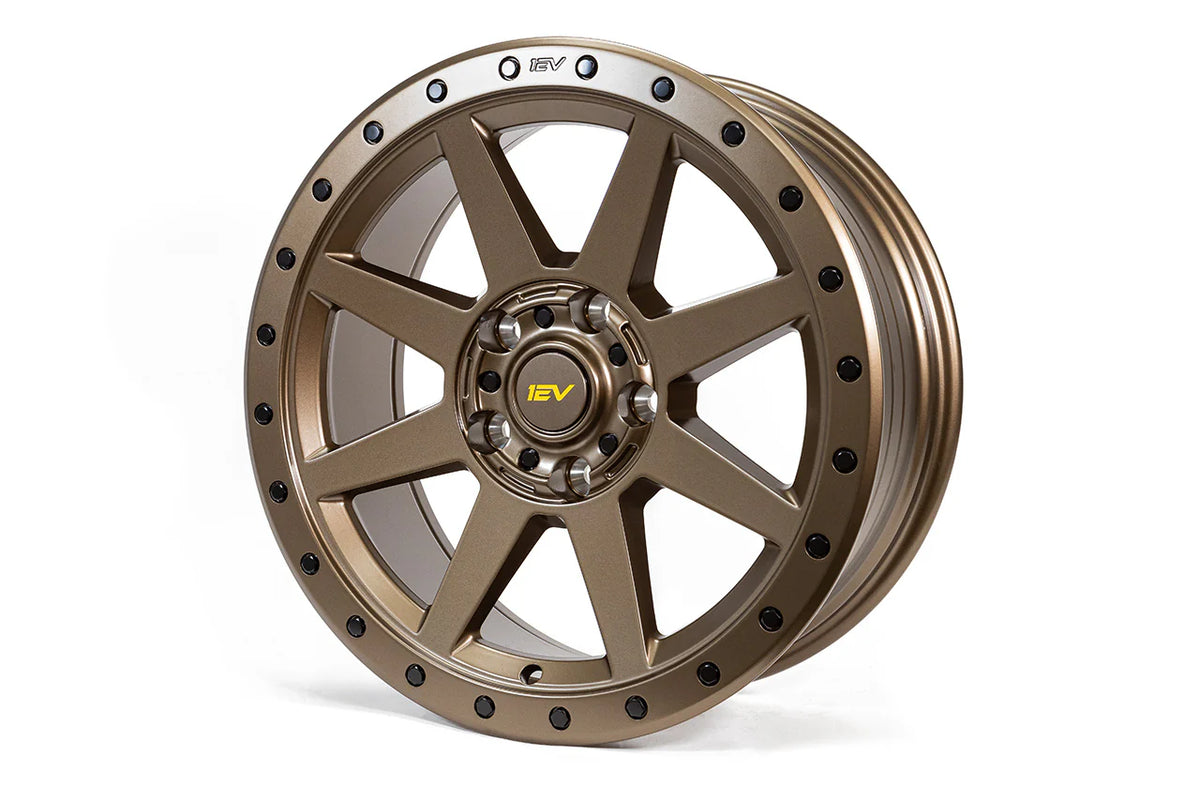

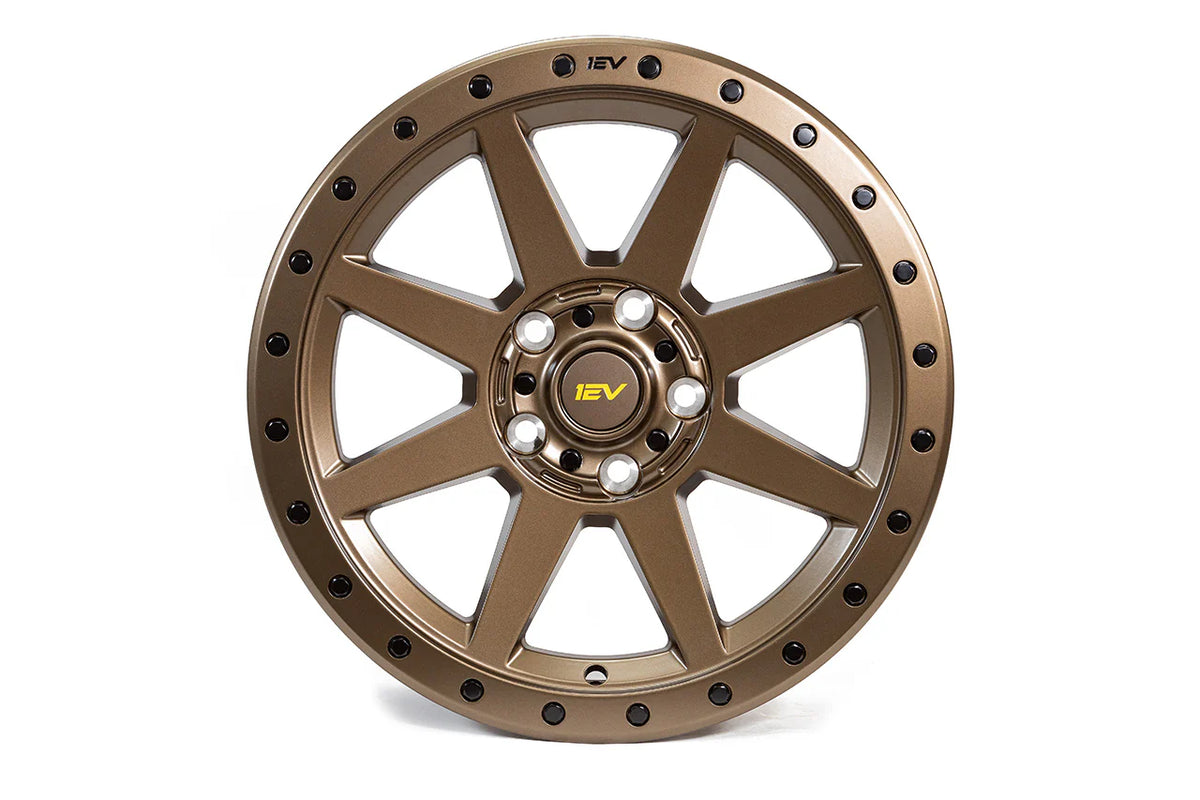

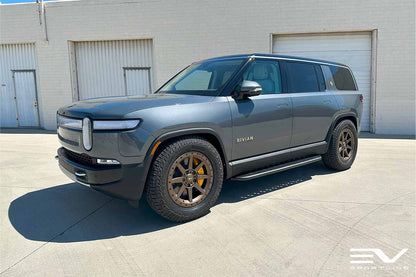

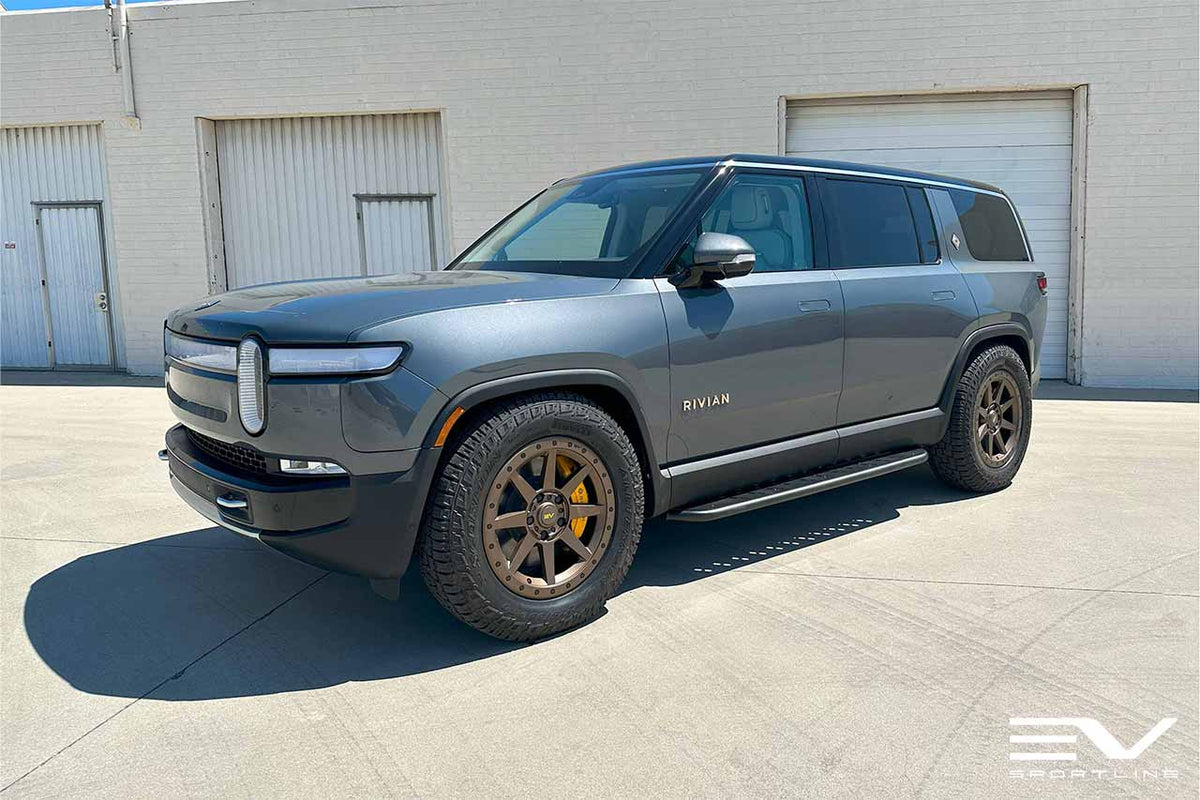

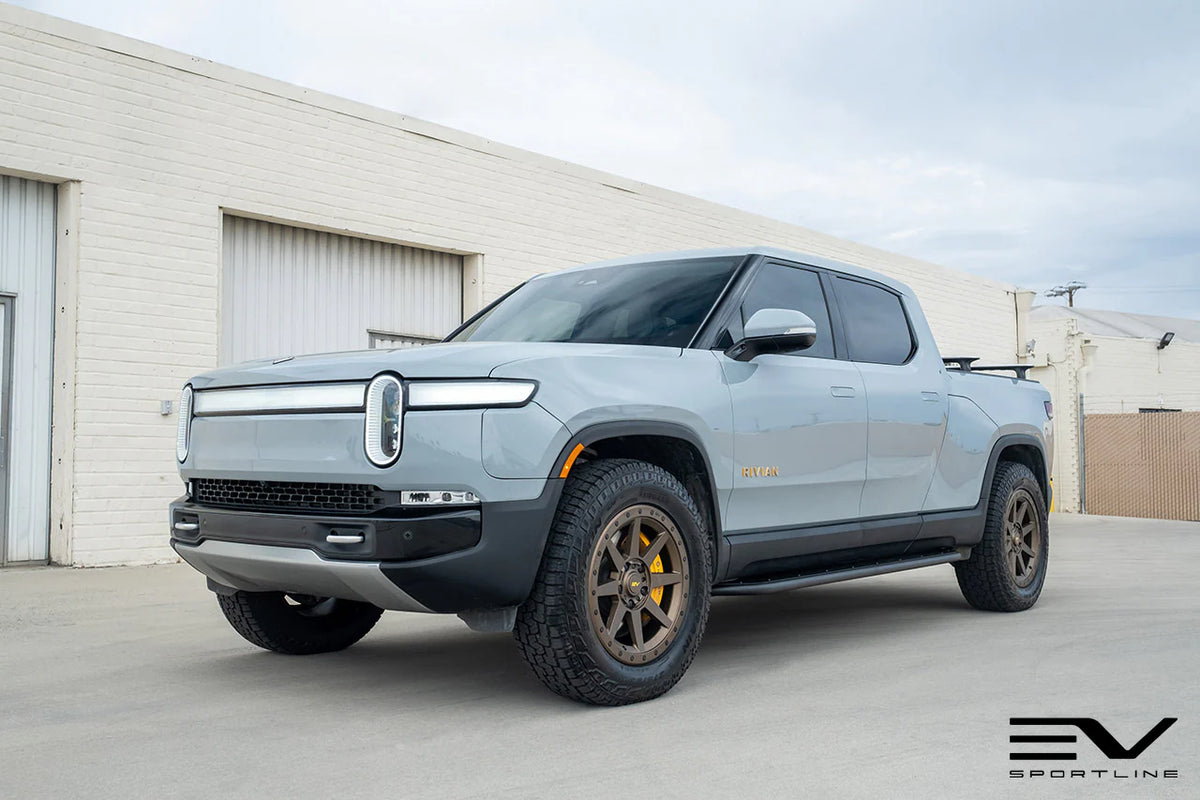

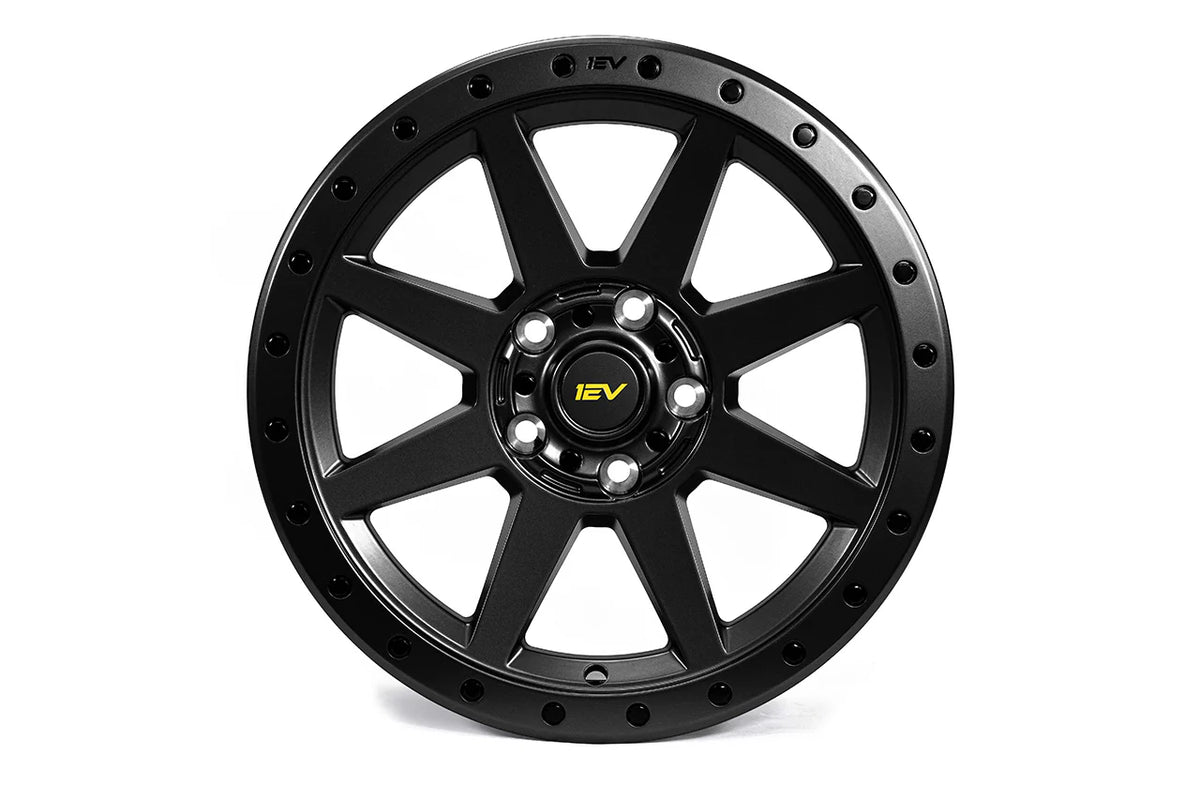

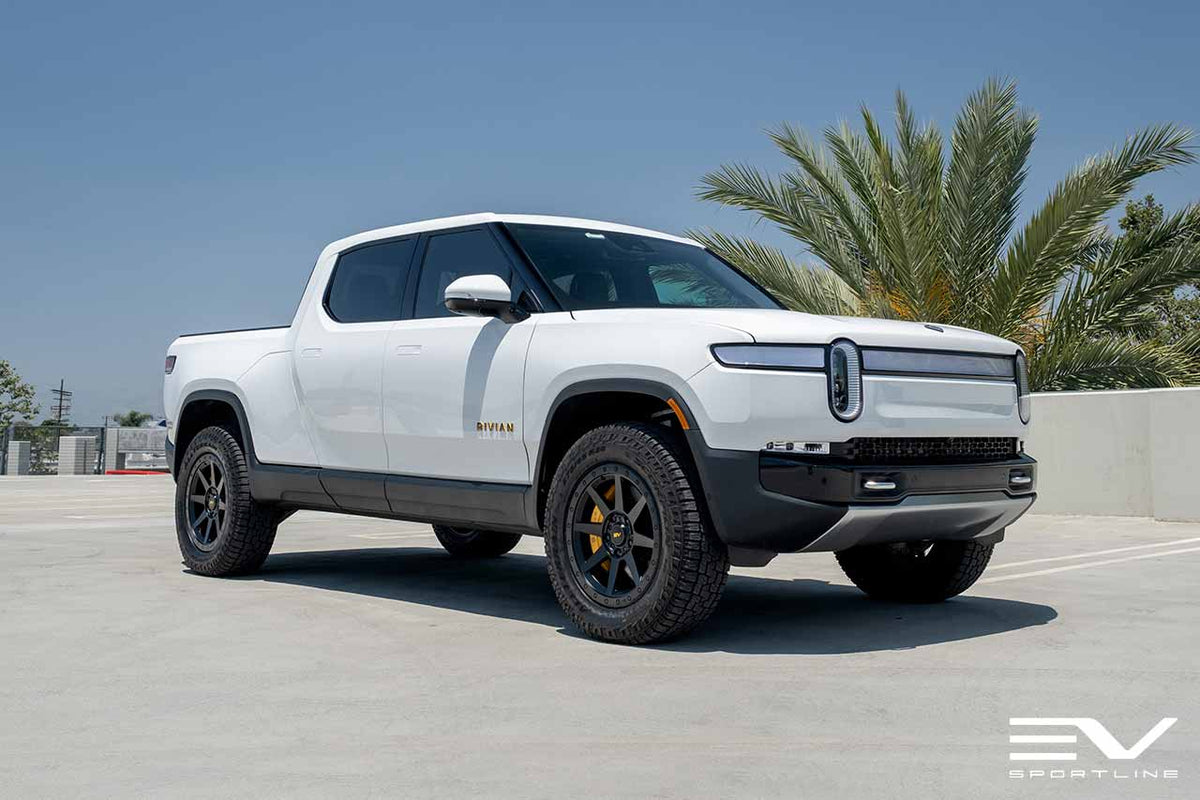

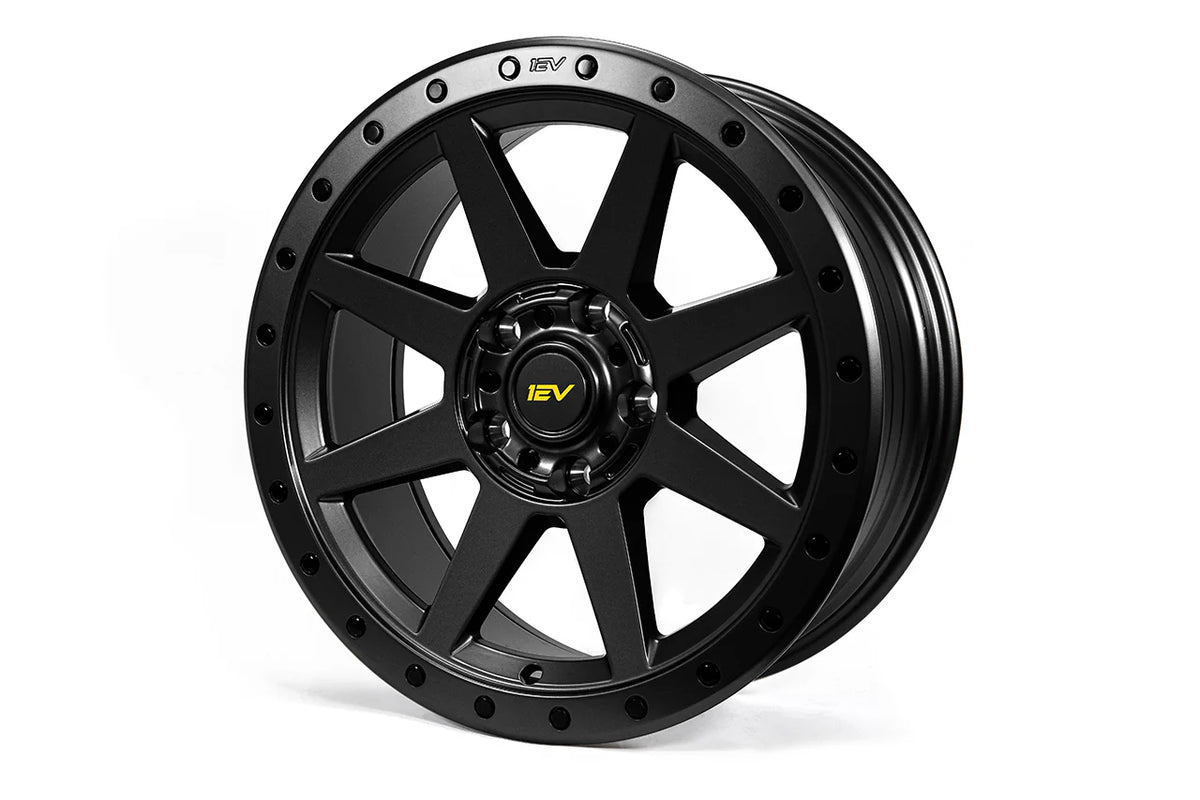

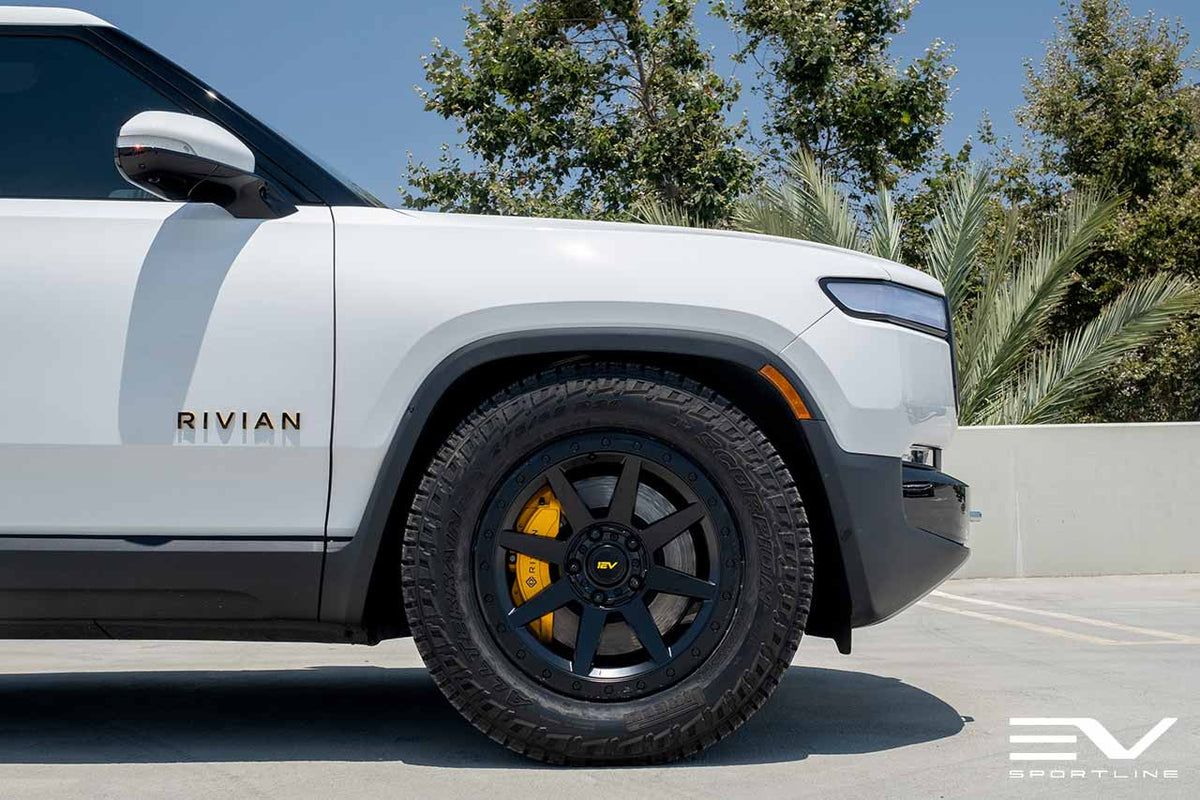

A Rivian-specific 20-inch flow-formed wheel engineered for the load, hardware, and factory-size tire requirements of the R1T and R1S. The Team 1EV R800 Compass uses a rugged eight-spoke design with an integrated beadlock-style ring and non-removable decorative bolts and is available individually, as a set of four, or as a five-wheel rotation/spare package.
Fitment
- 2022–present Rivian R1T
- 2022–present Rivian R1S
Wheel specifications
- Size: 20 × 8.5 inches
- Offset: +48
- Bolt pattern: 5 × 139.7 mm / 5 × 5.5 inches
- Center bore: 64.1 mm
- Weight: 33 lb per wheel
- Load rating: 1,150 kg / 2,530 lb per wheel
- Recommended tire size: 275/65R20
- Square, bidirectional fitment for any wheel position

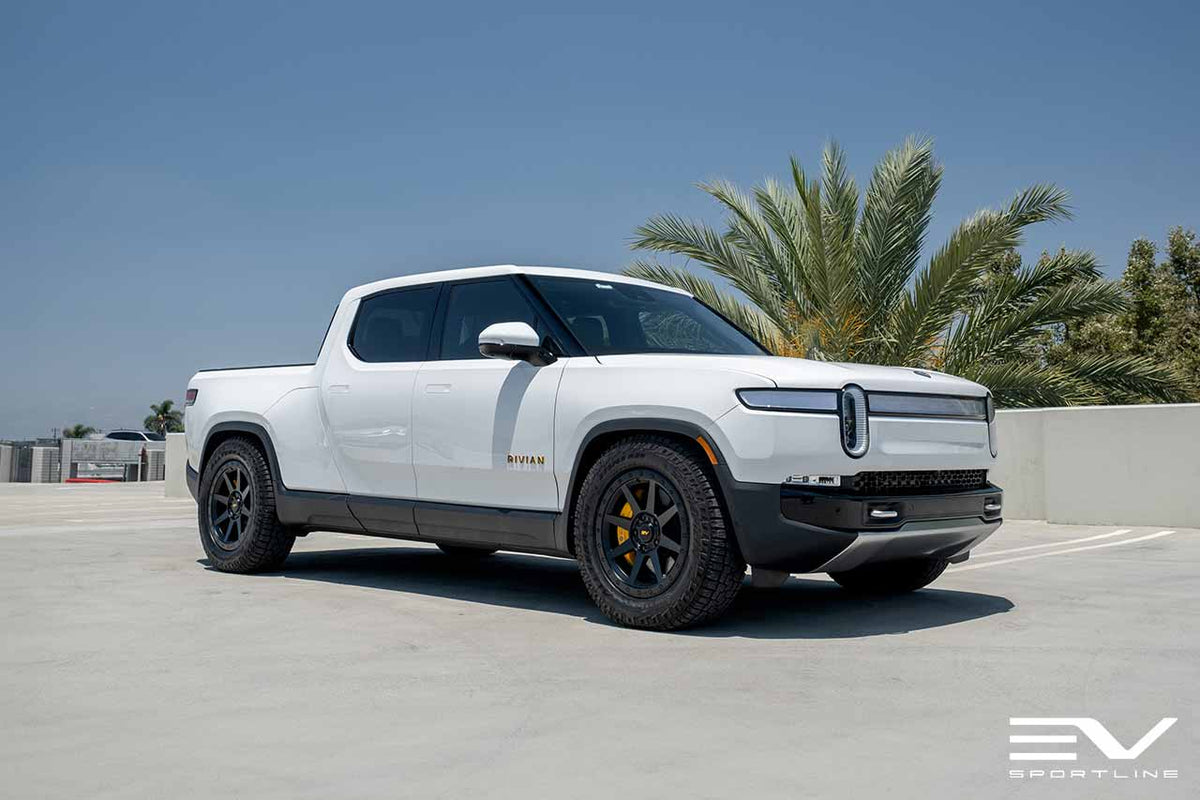

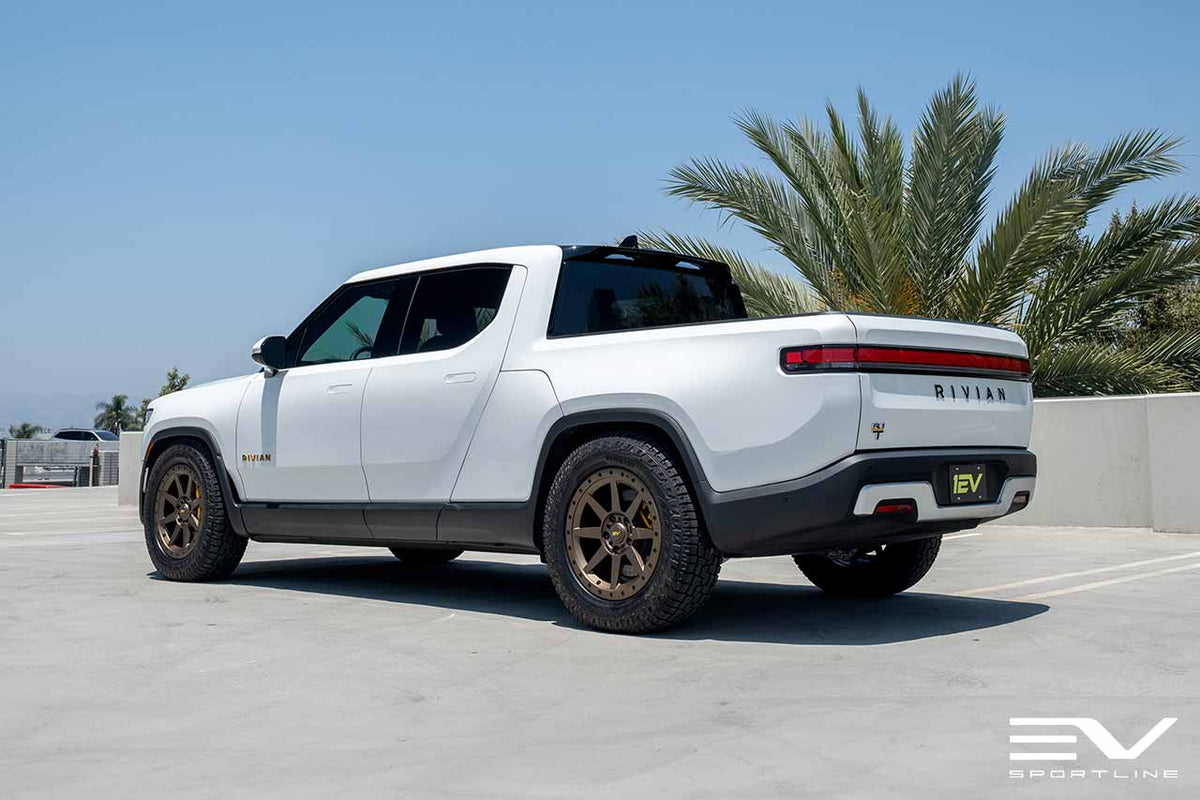

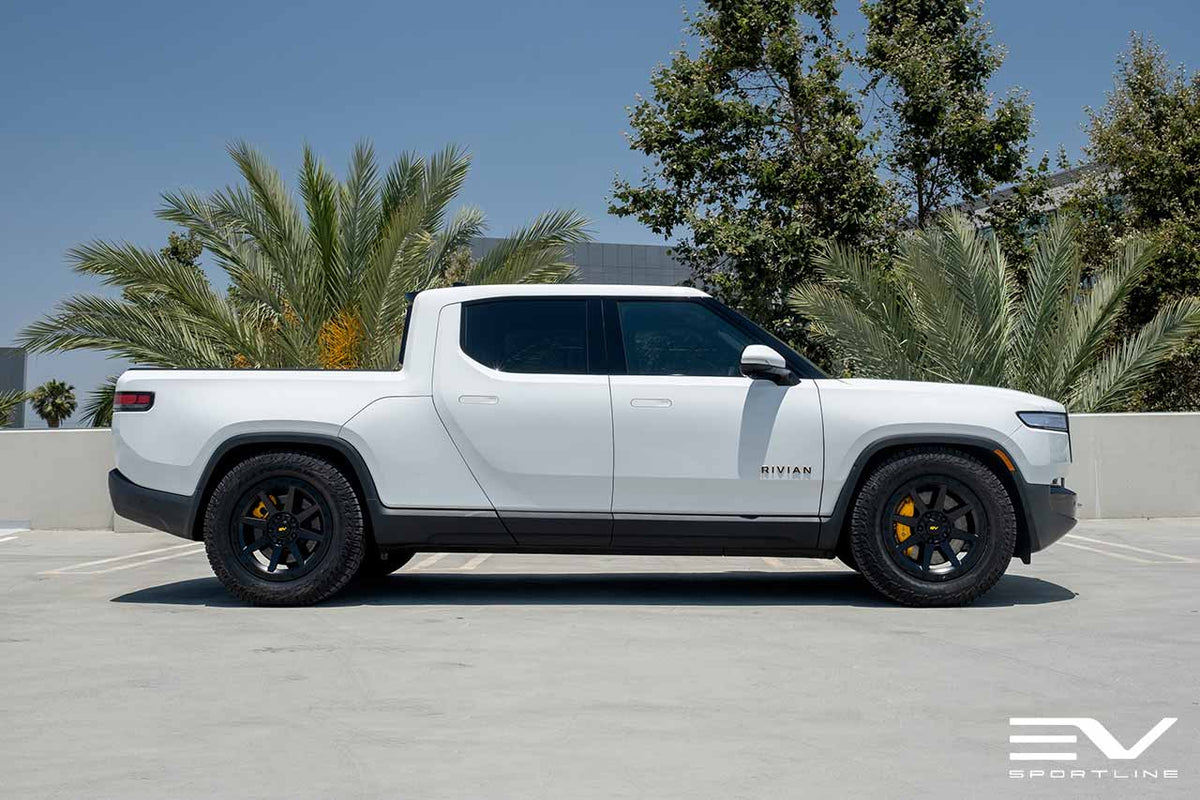

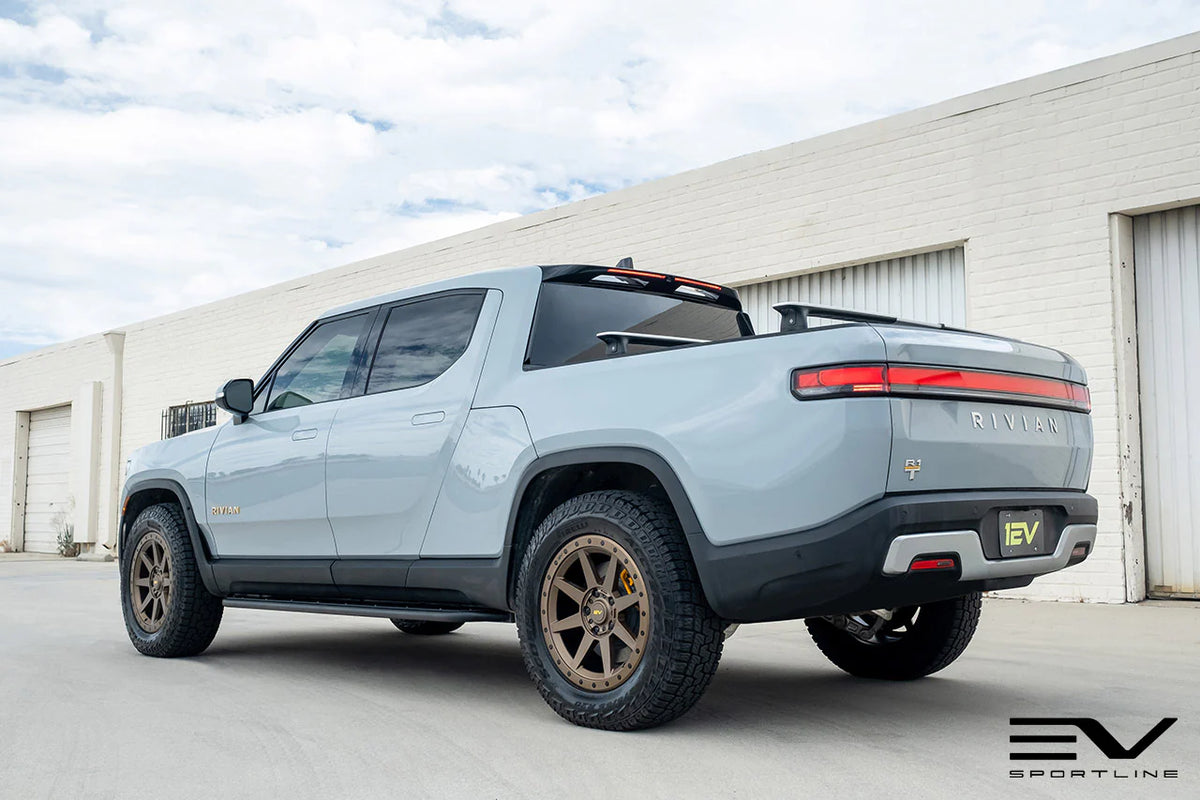

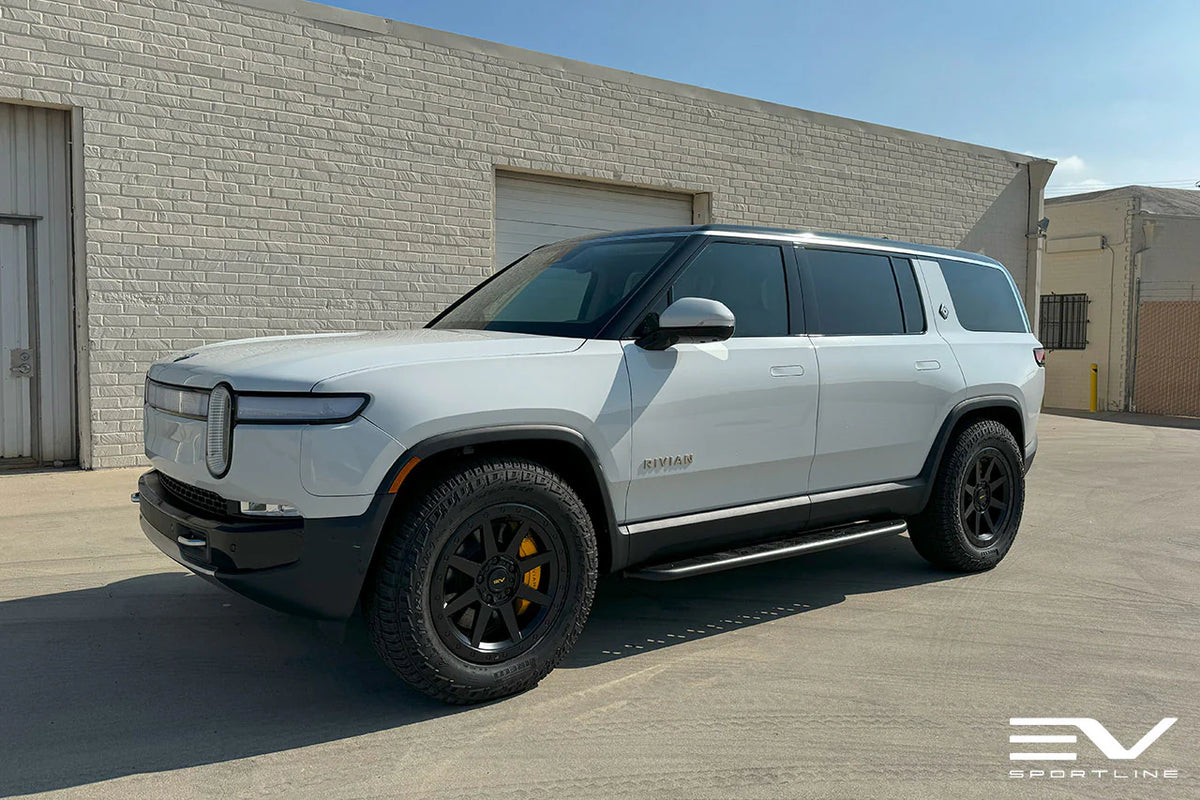

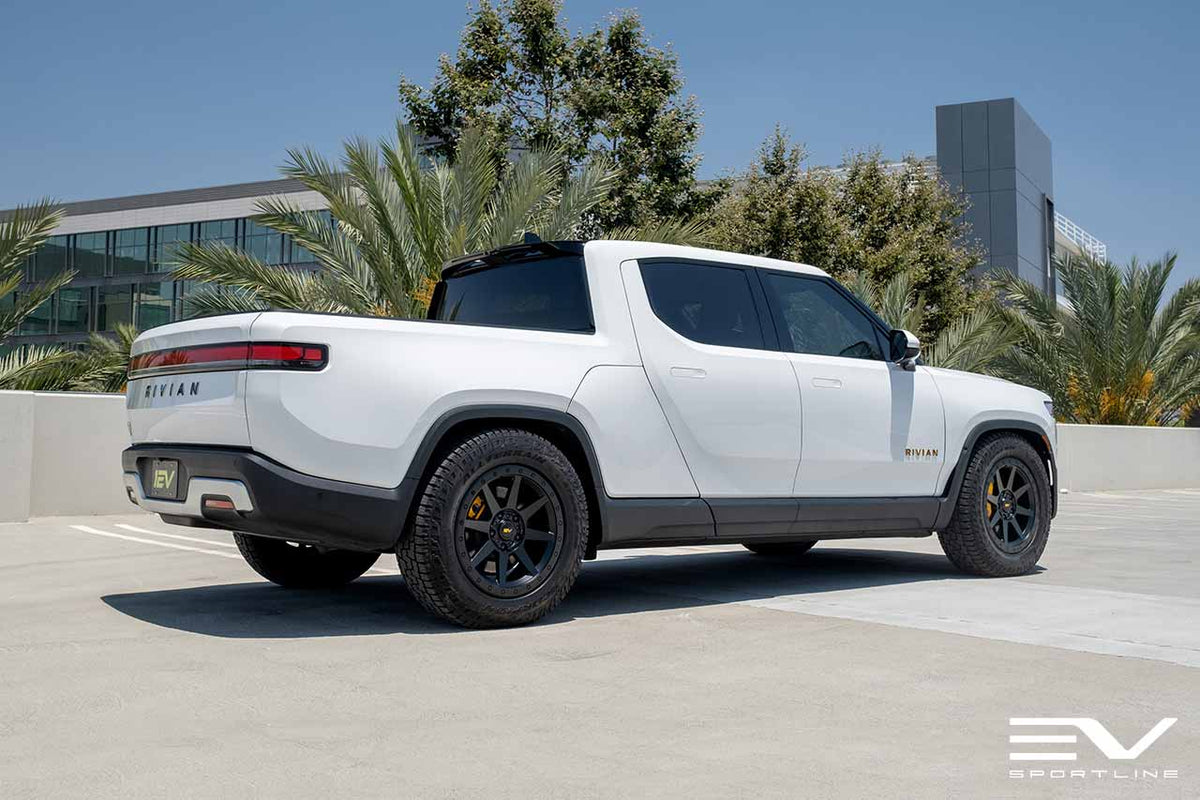

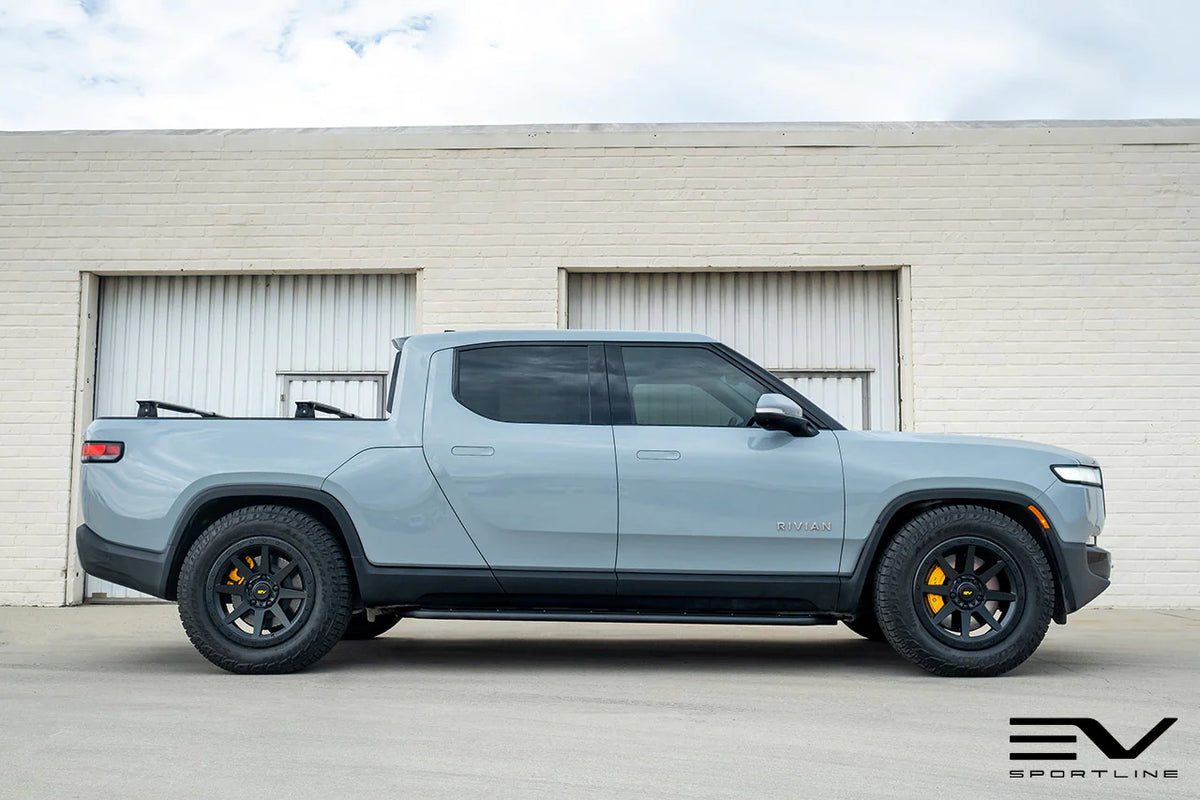

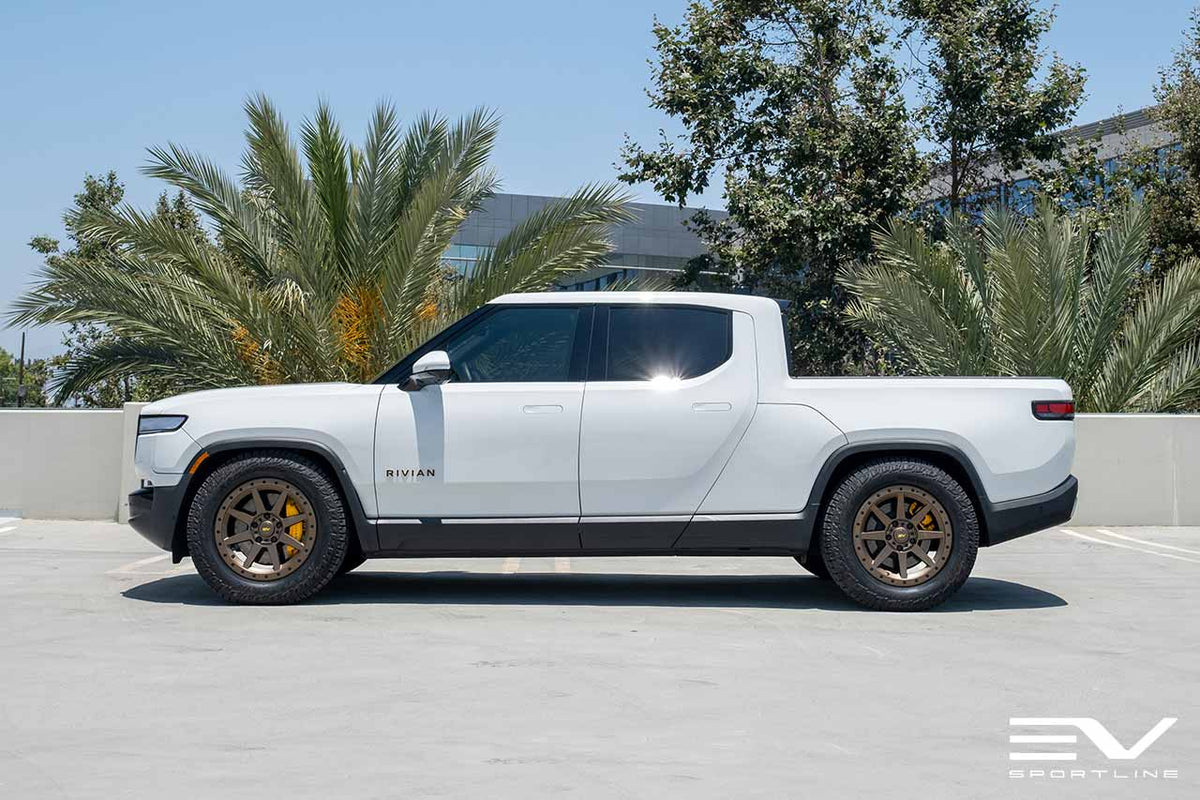

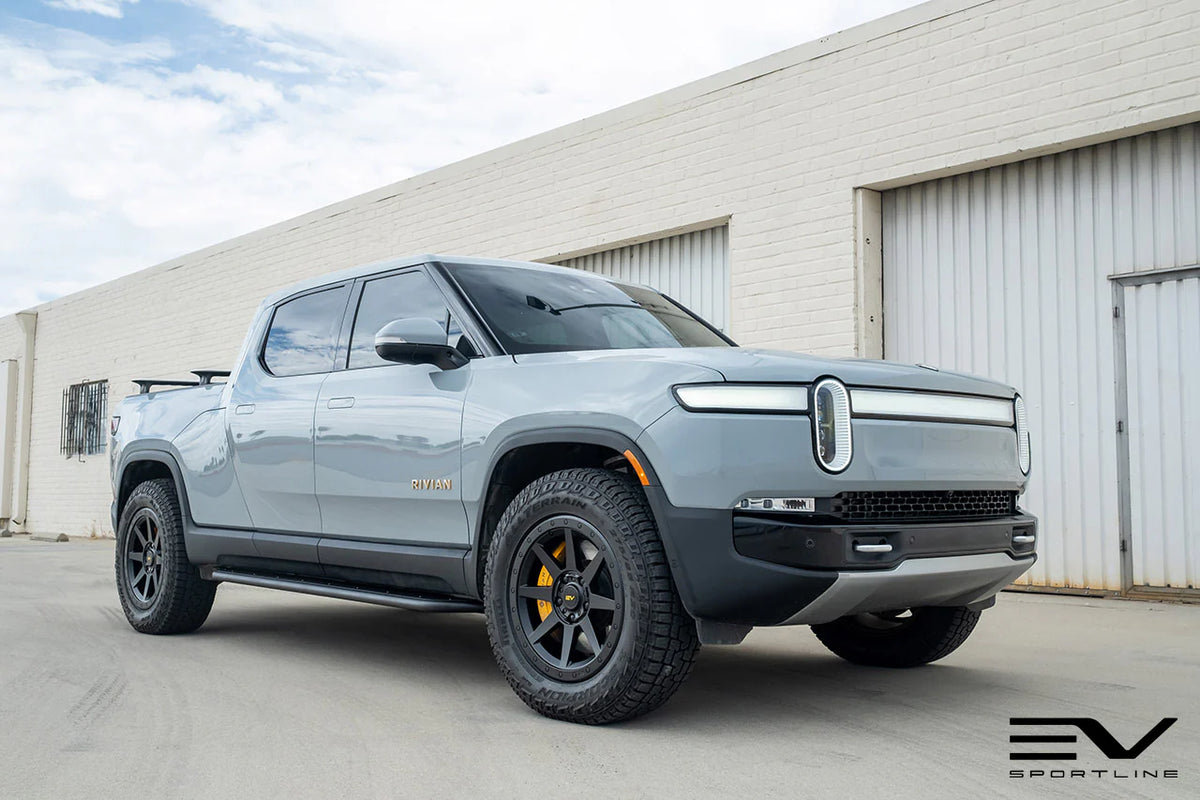

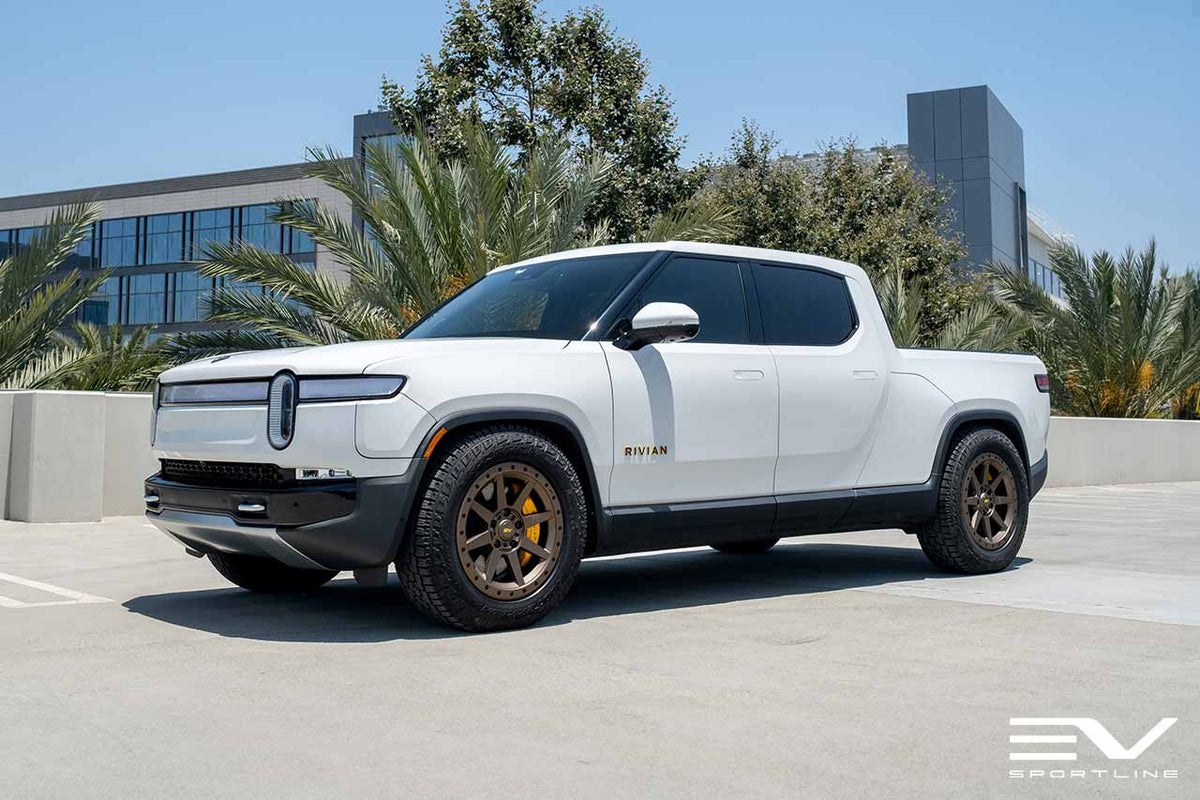

- Adventure Bronze or Satin Black
Quantity options
- One replacement/spare wheel
- Set of four wheels
- Set of five wheels for a full-size spare and five-tire rotation
Factory-hardware compatibility
- Designed for factory Rivian lug nuts; lug nuts are not included
- Compatible with factory Rivian TPMS sensors; sensors are not included
- Team 1EV center caps are included
- Accepts OEM Rivian 20-inch All-Terrain center caps; Rivian-logo caps are not included
Construction and validation
- CNC-machined, flow-formed construction
- FEA analyzed at 3,400 lb-force
- Manufactured in a TÜV-certified facility
- Designed for street, overland, and off-road use
Confirm tire load rating, overall diameter, clearance, and TPMS compatibility for the intended vehicle setup before ordering.
