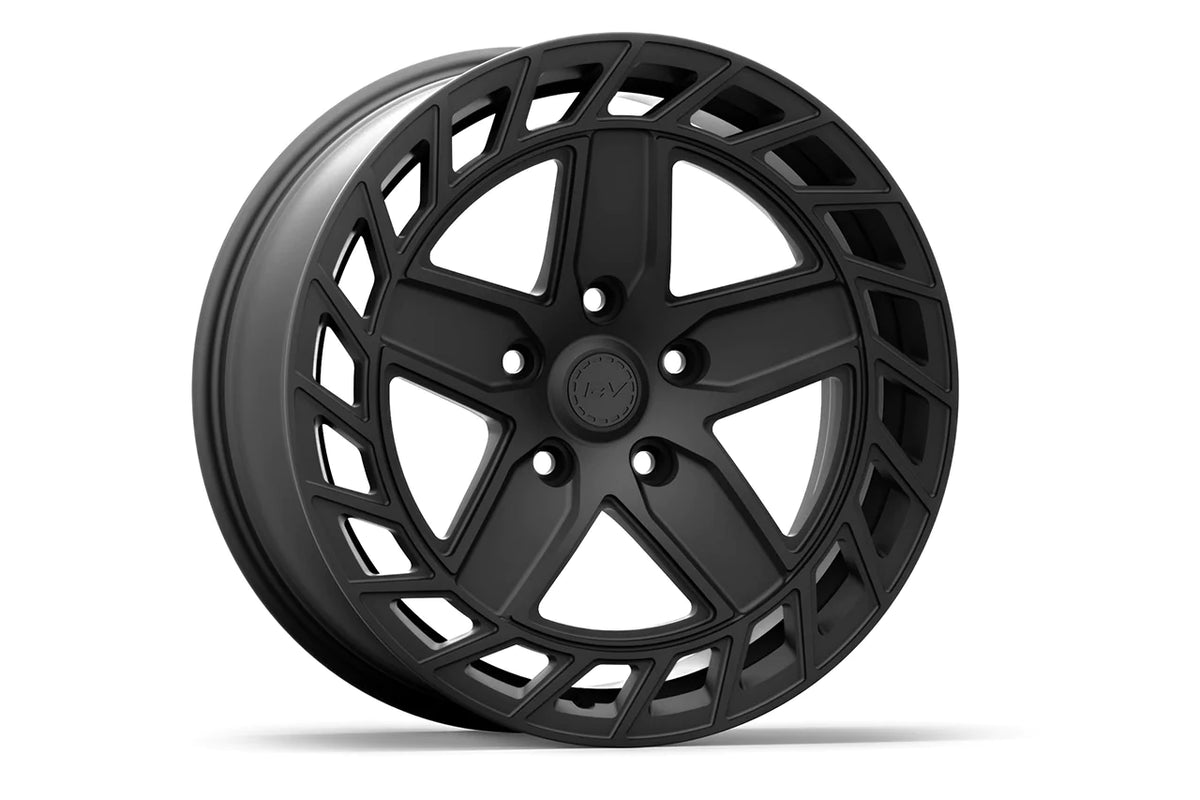

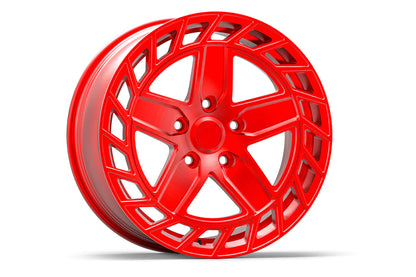

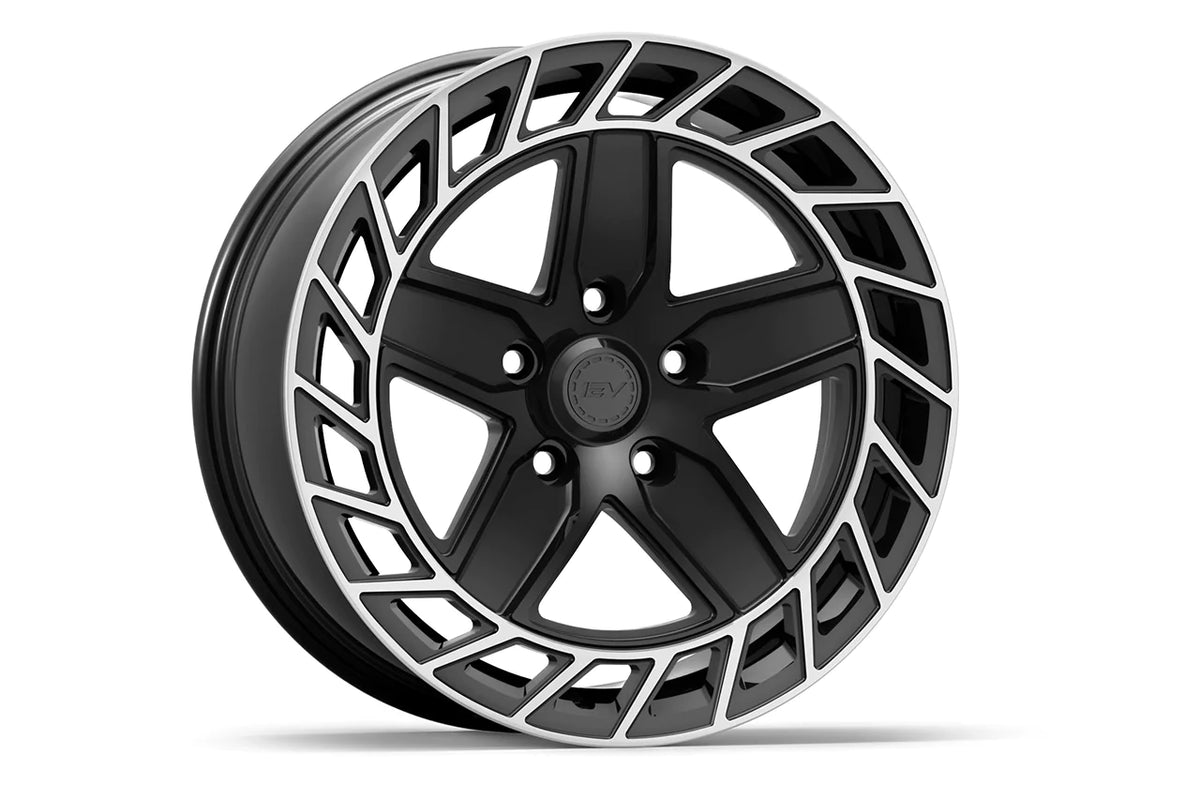

Team 1EV R500 20-Inch Directional Forged Wheels for Rivian R1T and R1S
The Team 1EV R500 is a Rivian-specific, one-piece forged wheel with a directional aero design and functional brake-exhaust vents. It is available individually or in four- and five-wheel configurations for 2022+ Rivian R1T and R1S.
Wheel specifications
- Size: 20 x 9 inches
- Offset: +38 front and rear
- Bolt pattern: 5 x 139.7 mm / 5 x 5.5 inches
- Center bore: 64.1 mm
- Construction: One-piece, fully forged and CNC-machined
- Weight: 35.4 lb per wheel
- Load rating: 1,125 kg / 2,475 lb per wheel
- Recommended tire size: 275/65R20
- Manufacturing: Made in the USA
Directional configuration
Four-wheel sets include two left-side and two right-side wheels. Select one, four, or five pieces in the required finish.
Factory hardware compatibility
Designed to accept factory Rivian lug nuts, TPMS sensors, and center caps. These factory components are not included.
Weight comparison
Each R500 weighs approximately 3 lb less than the factory 20-inch Rivian All-Terrain wheel, for an approximate 12 lb reduction in unsprung weight across a four-wheel set.
Selectable finishes

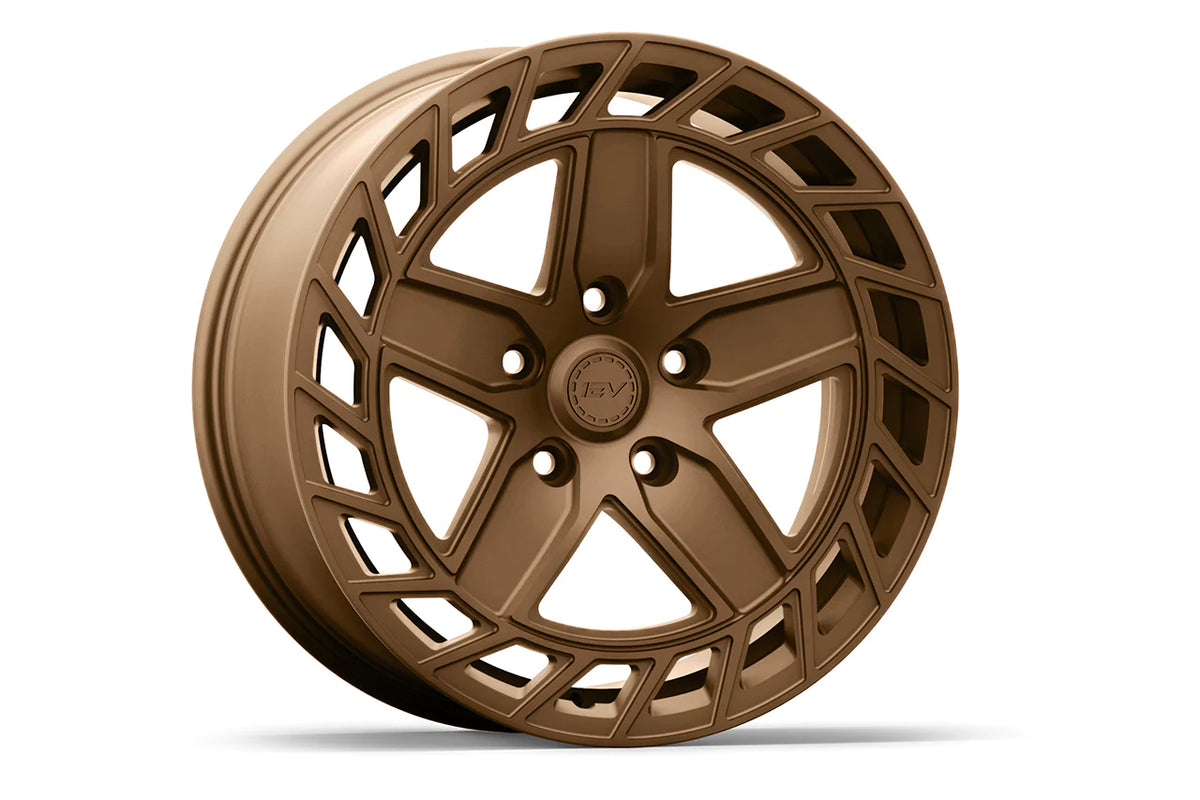

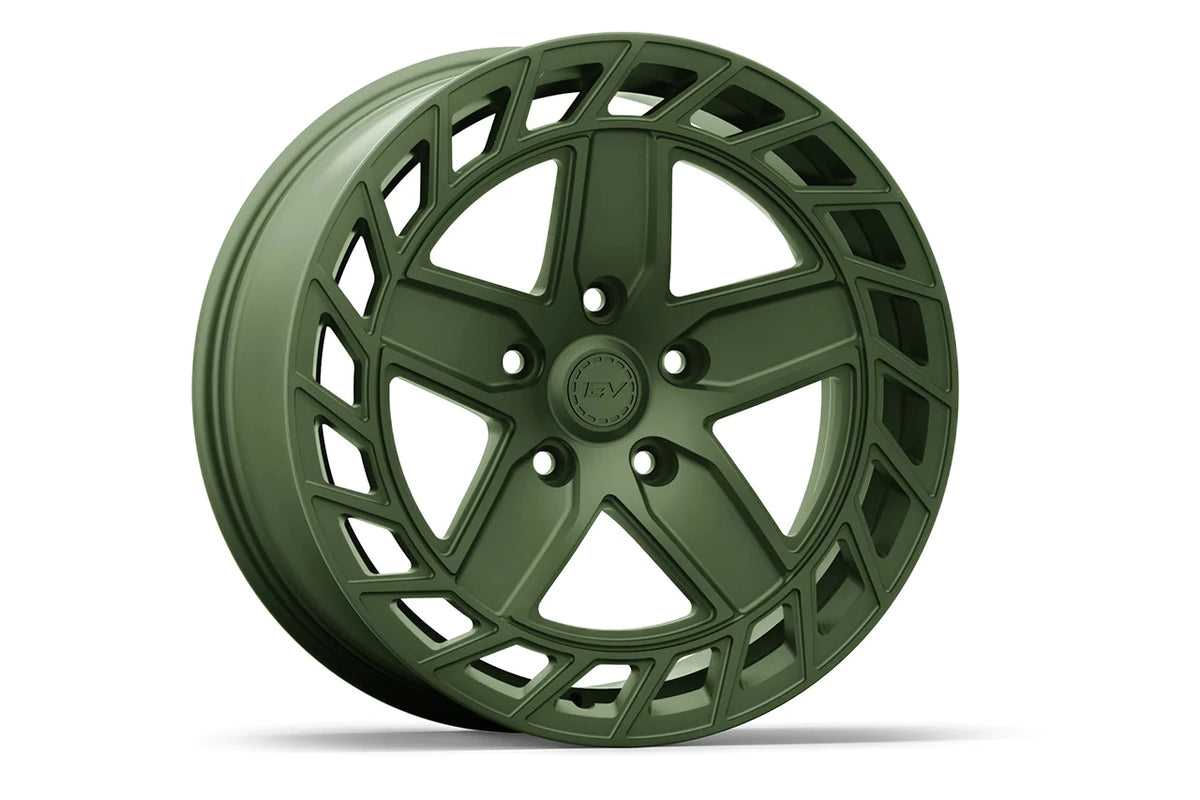

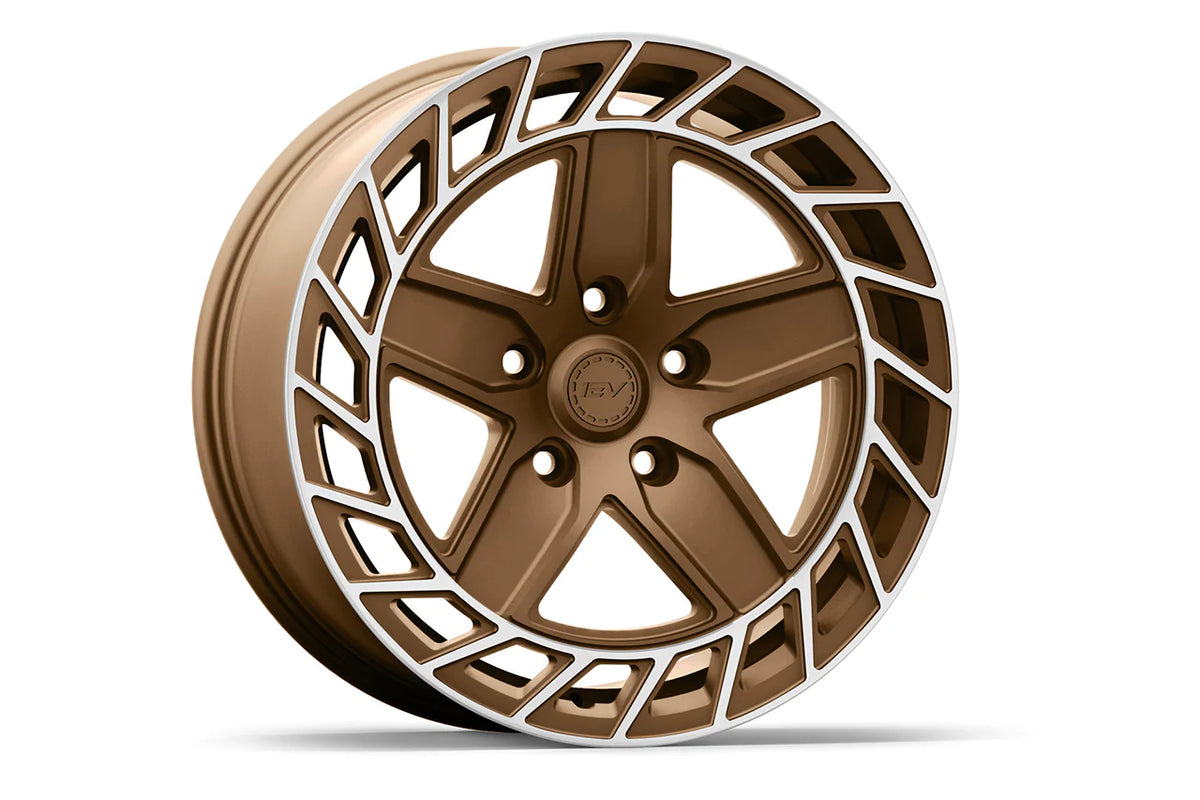

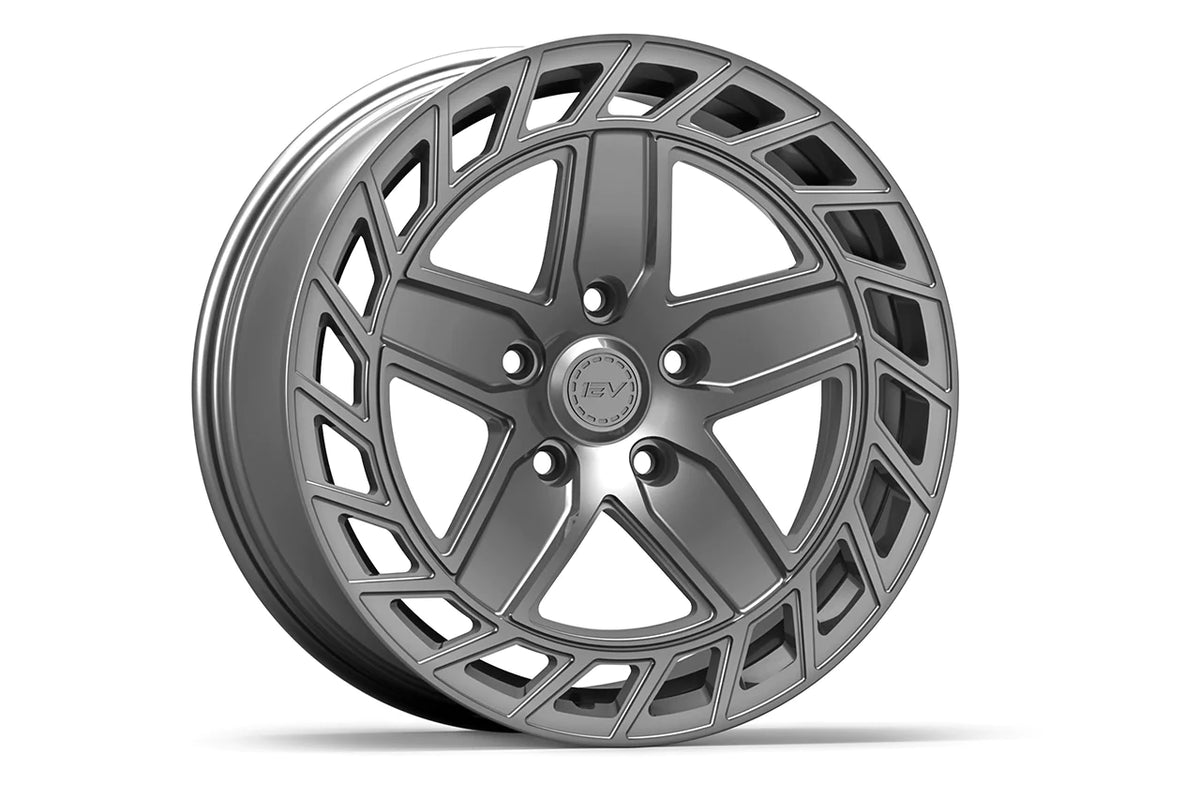

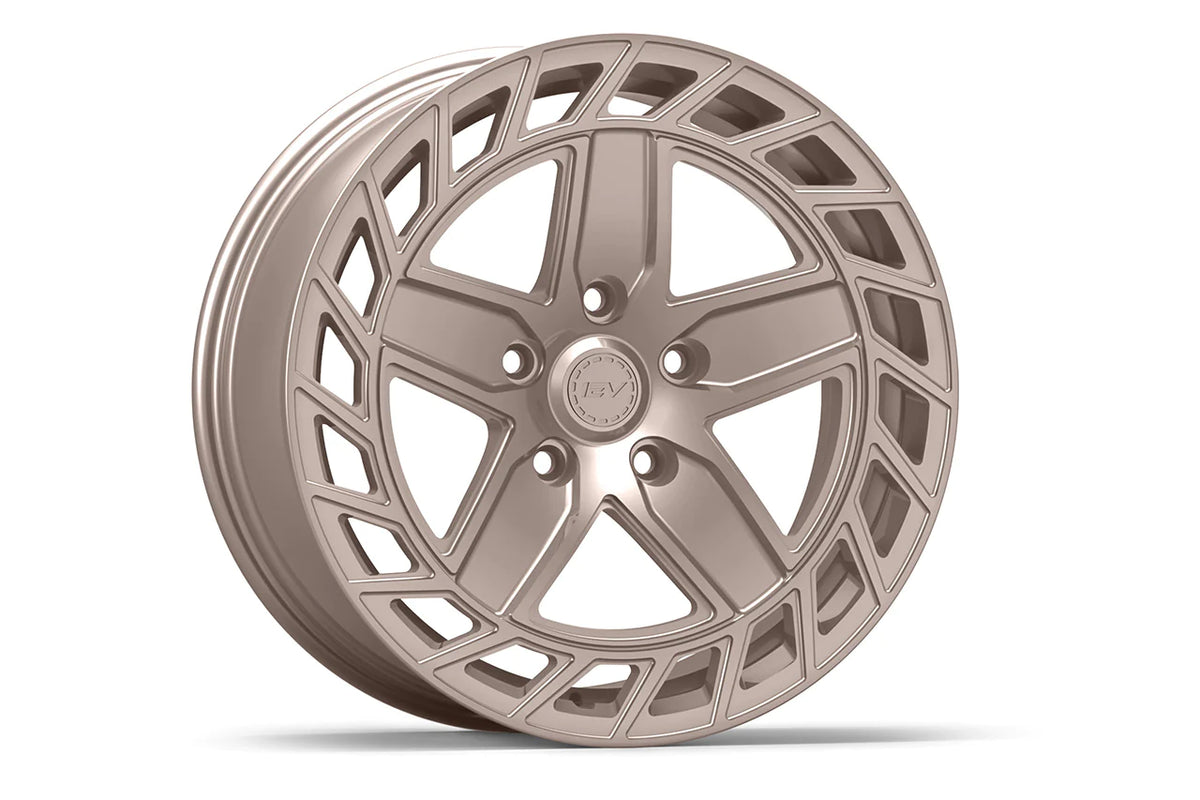

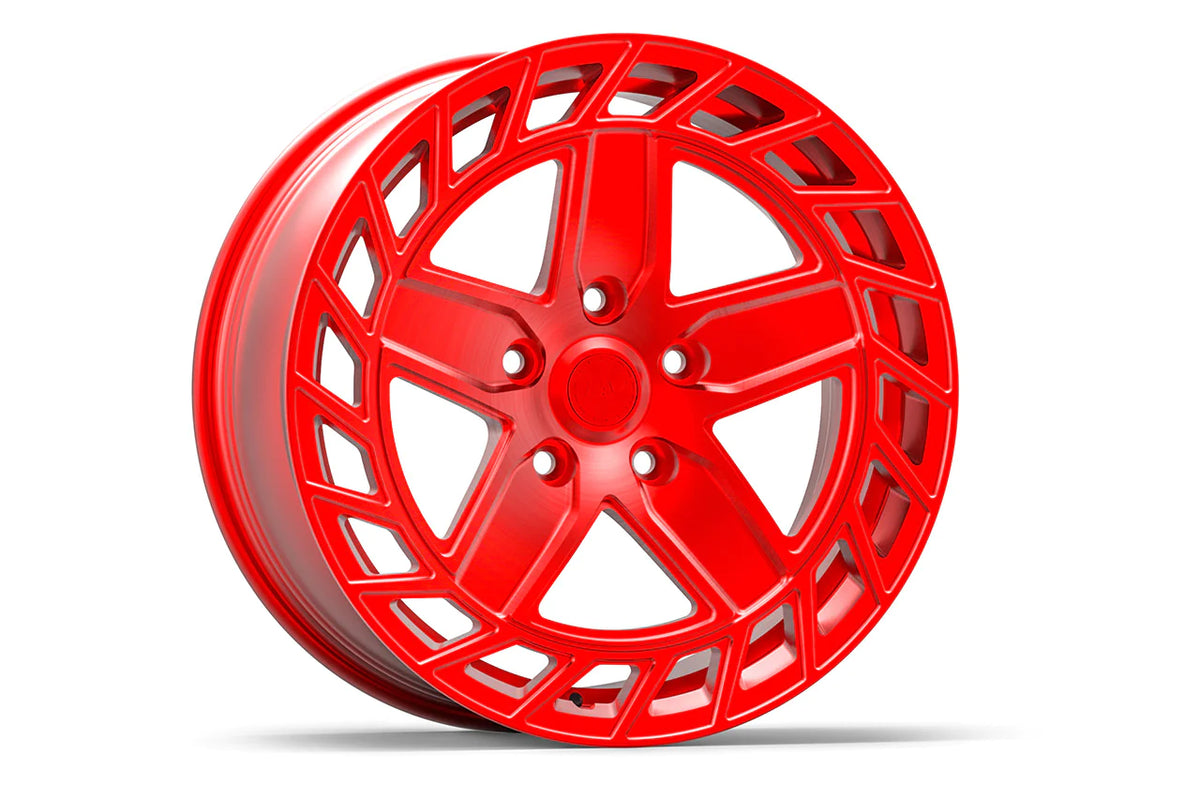

Gloss Black, Matte Black, Anthracite Gray, Champagne Rose, Brush, Velocity Red, Overland Green, Jupiter Bronze, Diamond Matte Bronze, and Diamond Black.
Fitment and fulfillment
- Fits 2022+ Rivian R1T and R1S
- Allow approximately 2–3 weeks for finishing and fulfillment because of current supply-chain logistics
Manufacturing video
Confirm vehicle generation, finish, wheel quantity, tire size, and any suspension changes before ordering.
