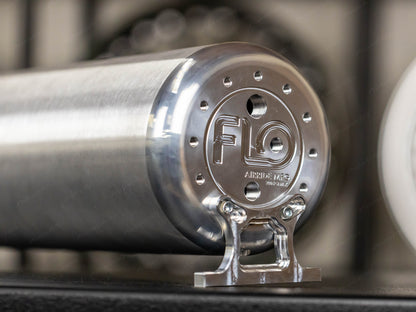

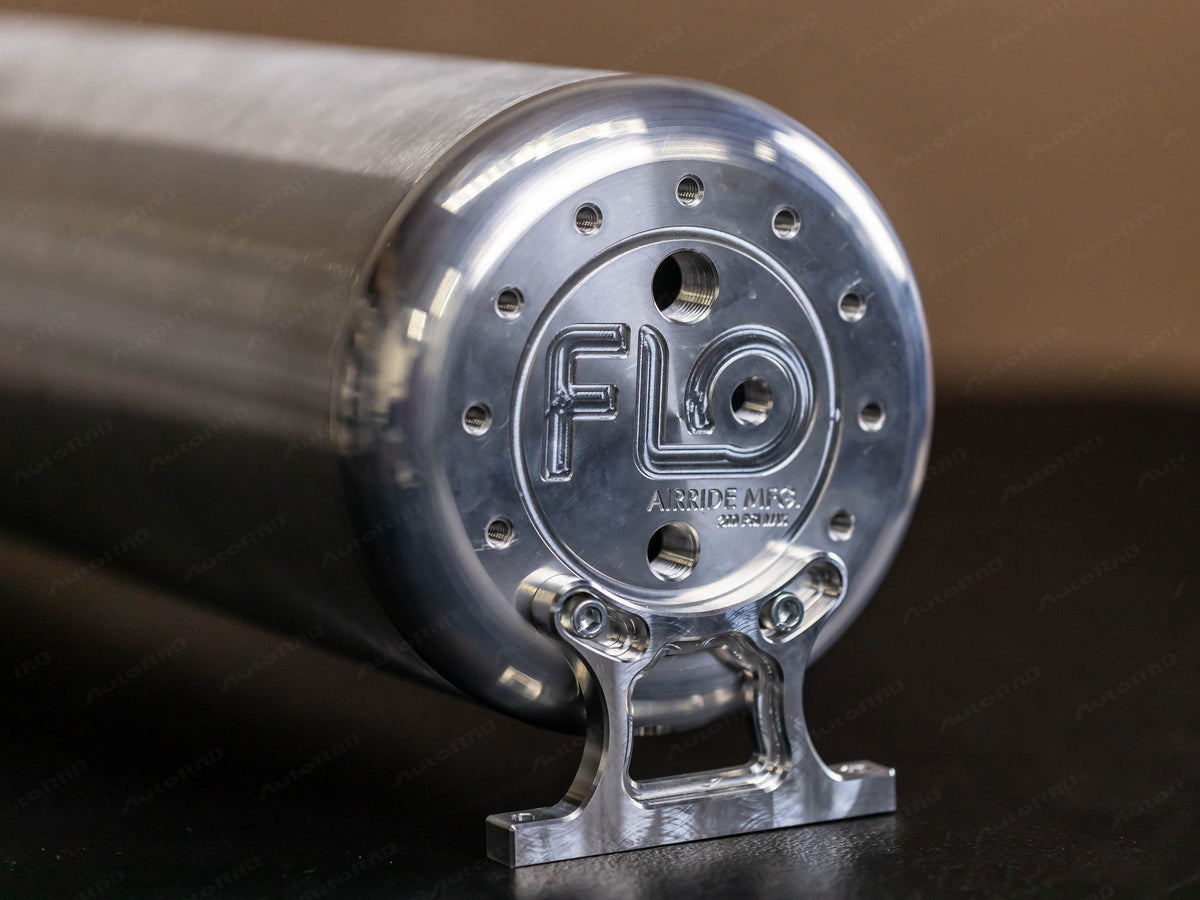

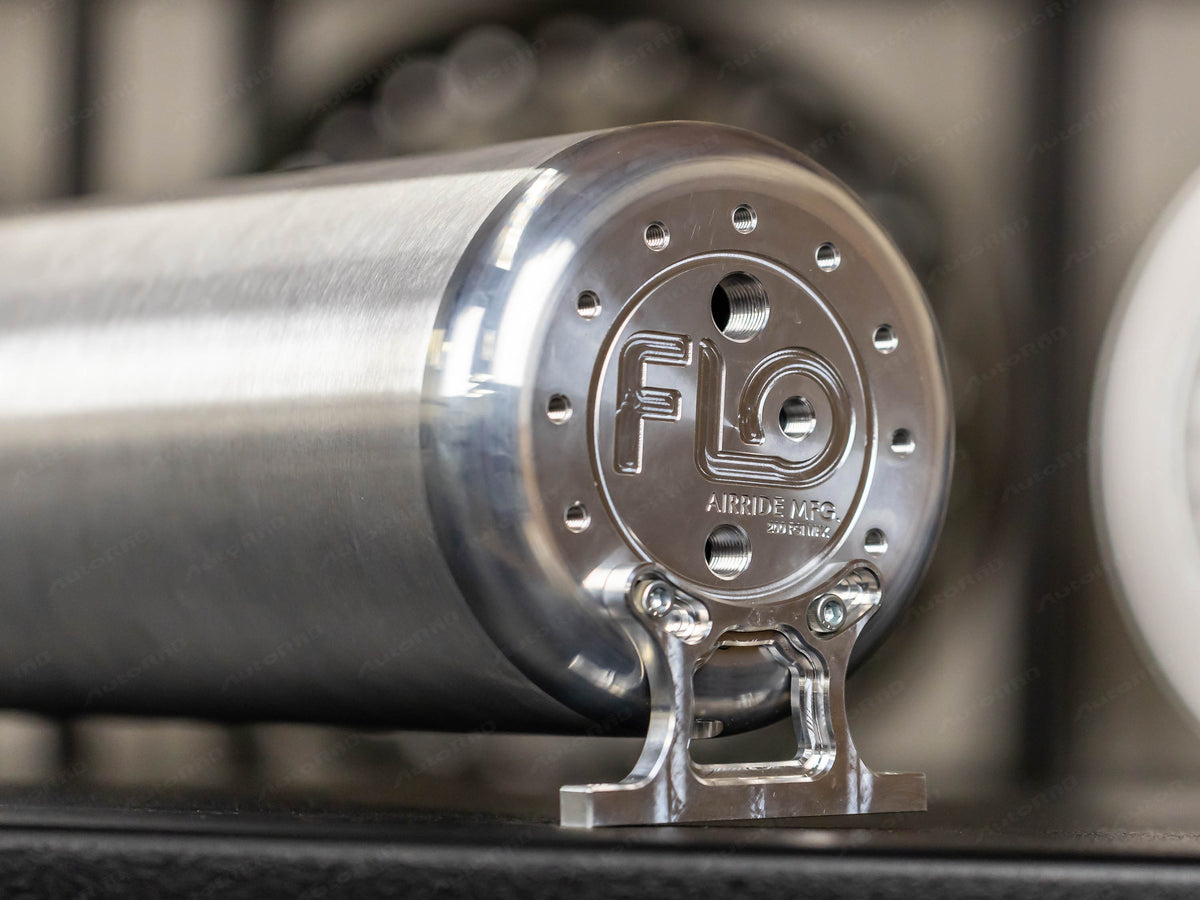

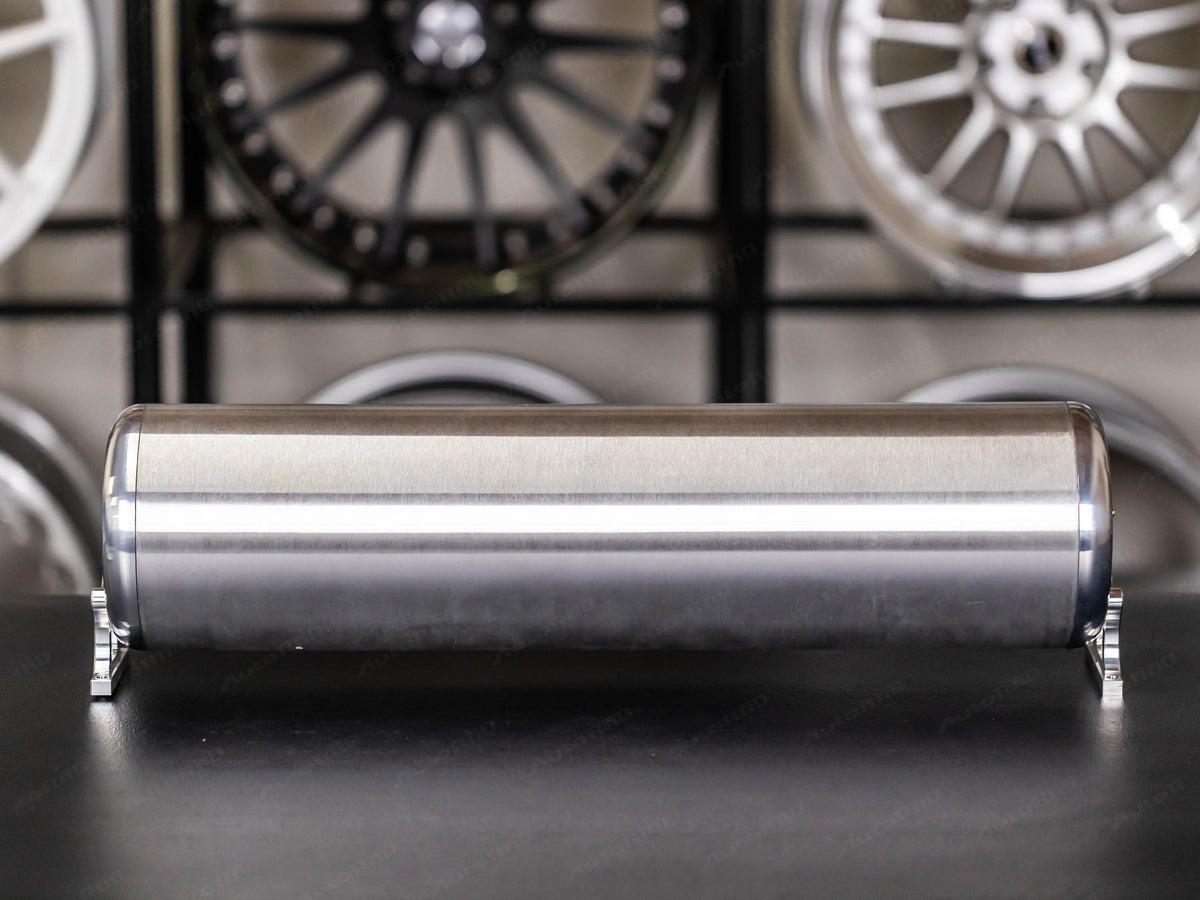

Build a clean, configurable air-management system with the FLO Airride modular billet tank. Its brushed aluminum tube, machined end caps, and multiple NPT ports support common air-suspension plumbing layouts and custom mounting configurations.
Choose a tank length
Available in 18-inch, 24-inch, and 28-inch lengths. Select the required size above.
Ports
- Two 1/4-inch NPT end ports
- Two 3/8-inch NPT end ports
- One 1/8-inch NPT end port
- One 1/8-inch NPT drain port
Construction and pressure
- Brushed tube finish with machined billet end caps
- Designed for a maximum working pressure of 200 PSI
- 225 PSI pressure-relief valve installed
- Precisely machined perimeter mounting holes
- Compatible with the supplied billet brackets or a properly engineered custom mount
Installation notes
Air-system components must be installed, sealed, mounted, and pressure-tested correctly. Do not exceed the stated 200 PSI maximum working pressure, and retain the installed pressure-relief valve.
