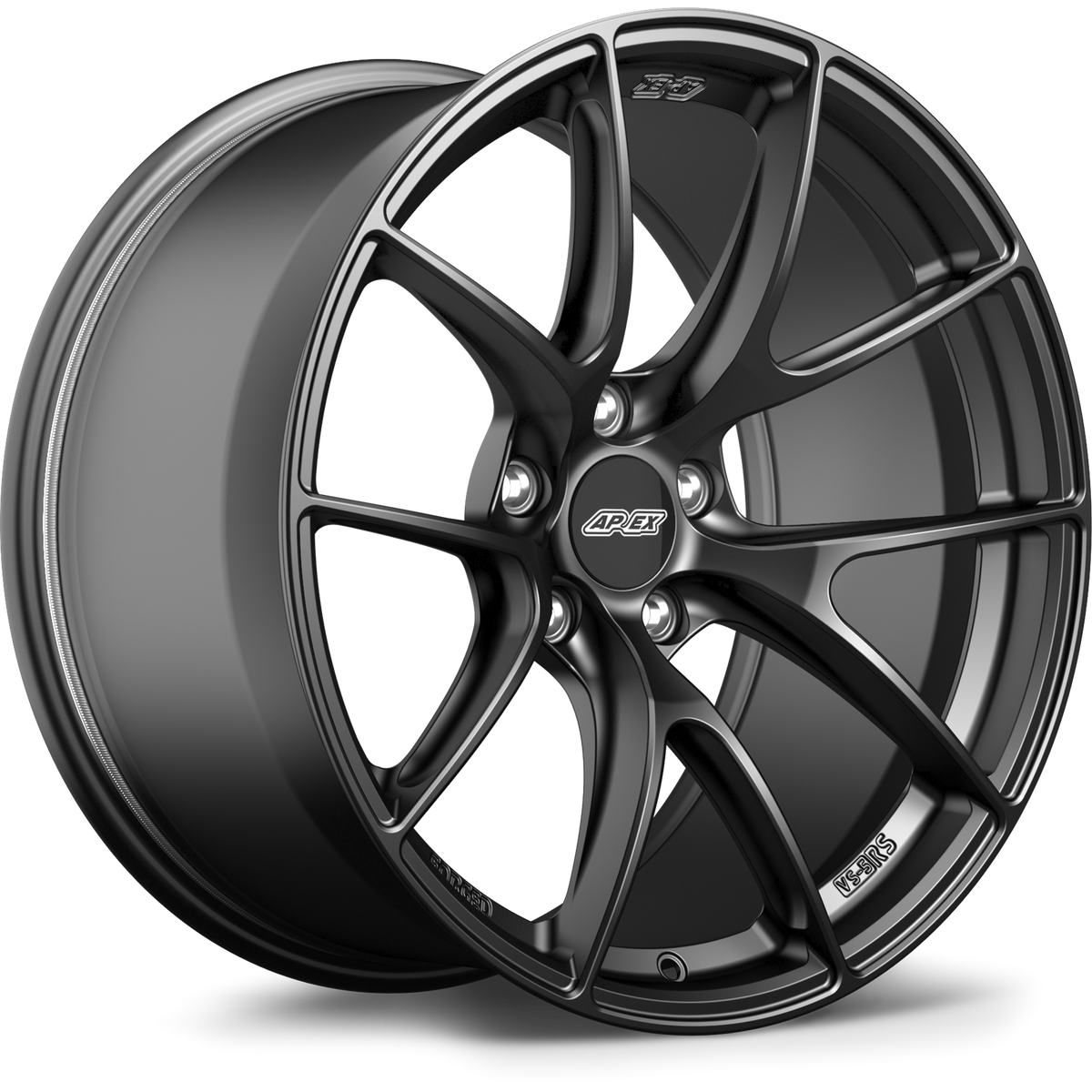

A set of four APEX VS-5RS forged wheels in Satin Black, with an 8.5-inch width and your choice of 18- or 19-inch diameter. These hub-centric Tesla Model 3 specifications offer a lighter forged wheel with a precise, motorsport-inspired design.
Wheel specifications
- Quantity: Set of four wheels
- Construction: Forged
- Finish: Satin Black
- Bolt pattern: 5x114.3mm
- Center bore: 64.1mm
- Lug seat: 60 Degree Conical
- Face profile: Profile 3
- Load rating: 1,600 lb per wheel
- Approximate weight per wheel: 18-inch: approximately 17.5 lb; 19-inch: approximately 18.3 lb
- Vehicle application: Tesla Model 3
Available specifications
| Diameter | Width | Offset | APEX SKU |
|---|---|---|---|
| 18 in. | 8.5 in. | +23 | VS5RS1885ET23-51143-641-NSBK |
| 19 in. | 8.5 in. | +23 | VS5RS1985ET23-51143-641-NSBK |
The displayed price is for four matching wheels. Tires, TPMS sensors and installation are not included.
Fitment and ordering
Confirm vehicle year, trim, brakes, suspension and tire selection with ZEVcentric before ordering. Tire sizing differs by vehicle. See the Apex Model 3 fitment guide for application-specific guidance.
Manufacturer images show the design and finish; wheel diameter and face details can vary by specification. Contact ZEVcentric for current availability.
