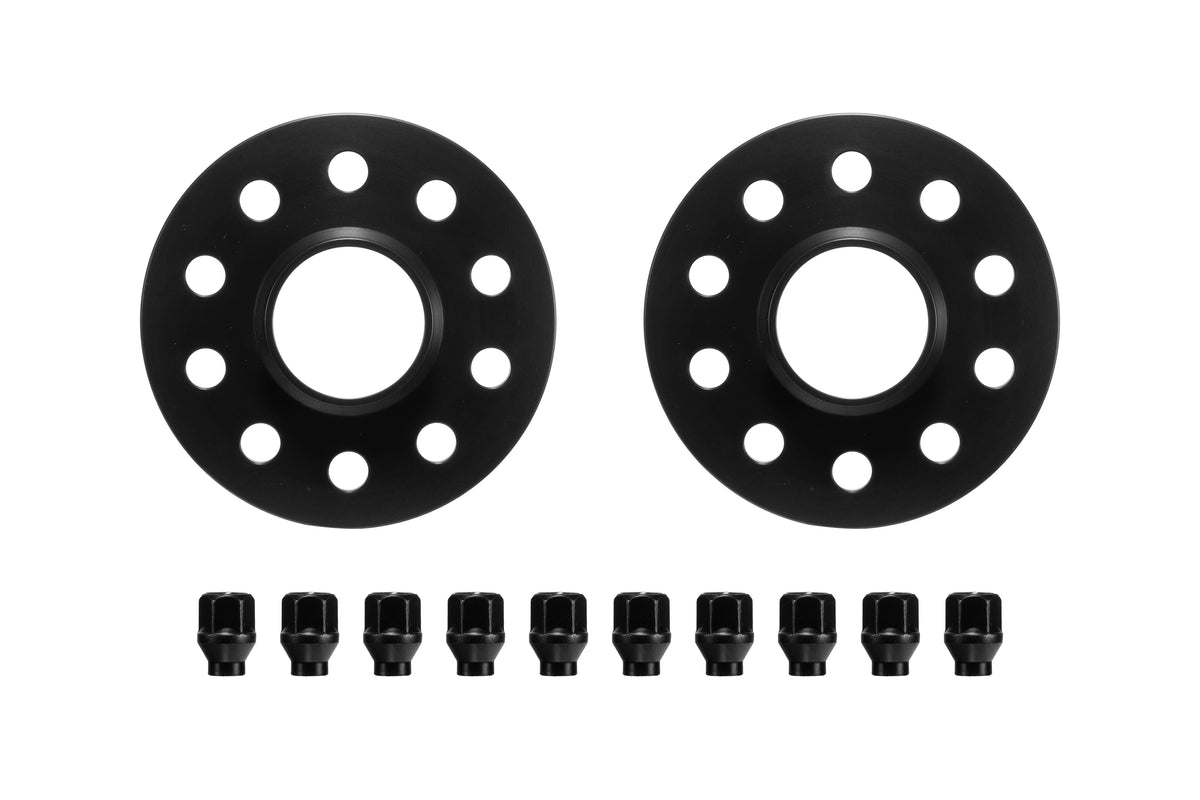

Fine-tune staggered 20-inch Tesla Model 3 Warp wheel fitment with a ZEVcentric front-and-rear spacer package. The live options cover several visual and clearance targets using spacers from 5 mm through 20 mm.
Available combinations
- OEM: 5 mm front + 10 mm rear; shank lug nuts used with the 10 mm spacers
- OEM+: 10 mm front + 10 mm rear; shank lug nuts
- OEM++: 5 mm front + 15 mm rear
- OEM+++: 10 mm front + 14 mm rear; shank lug nuts
- OEM+++: 10 mm front + 15 mm rear; shank lug nuts used with the 10 mm spacers
- OEM++++: 15 mm front + 15 mm rear
- OEM+++++: 15 mm front + 20 mm rear
All 5 mm spacers are natural clear-anodized aluminum. The 10 mm spacers that require special extended-shank lug nuts are also natural clear anodized.
Important fitment notes
- For staggered 20-inch Warp wheels on a Tesla Model 3
- Compatible with stock brake rotors only
- Ride height and rear camber-arm configuration determine the appropriate combination
- ZEVcentric can provide its preferred alignment specifications for a lowered vehicle with rear camber arms
Confirm the vehicle’s ride height, brake hardware, wheel dimensions, and camber setup with ZEVcentric before fulfillment.
Installation notes
Professional installation is recommended. Verify wheel-to-fender, tire-to-body, suspension, brake, wheel-pocket, and stud clearance through the full steering and suspension range. Torque all hardware to specification and recheck it after the initial driving interval.
