Install factory 20 × 9.5-inch Tesla Model Y Induction wheels on a Tesla Model 3 with this vehicle-specific spacer conversion package. The spacer combination is selected according to the Model 3 brake configuration and the wheel’s pocket depth and stud protrusion.
Select the correct configuration

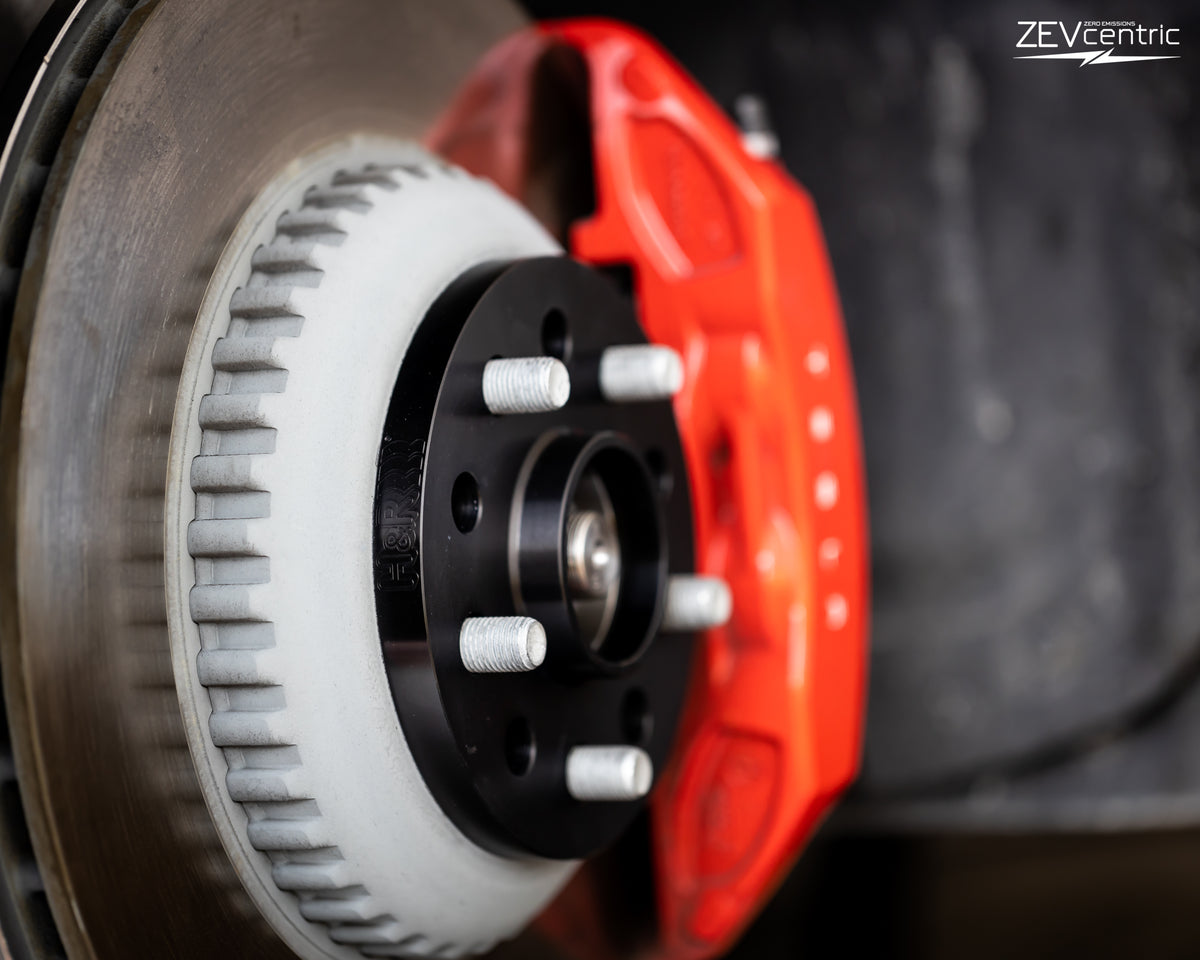

- Model 3 Performance with red calipers and factory one-piece rotors: 14 mm front and 14 mm rear
- Model 3 with silver calipers, or a vehicle using compatible two-piece rotors: 10 mm front and 10 mm rear

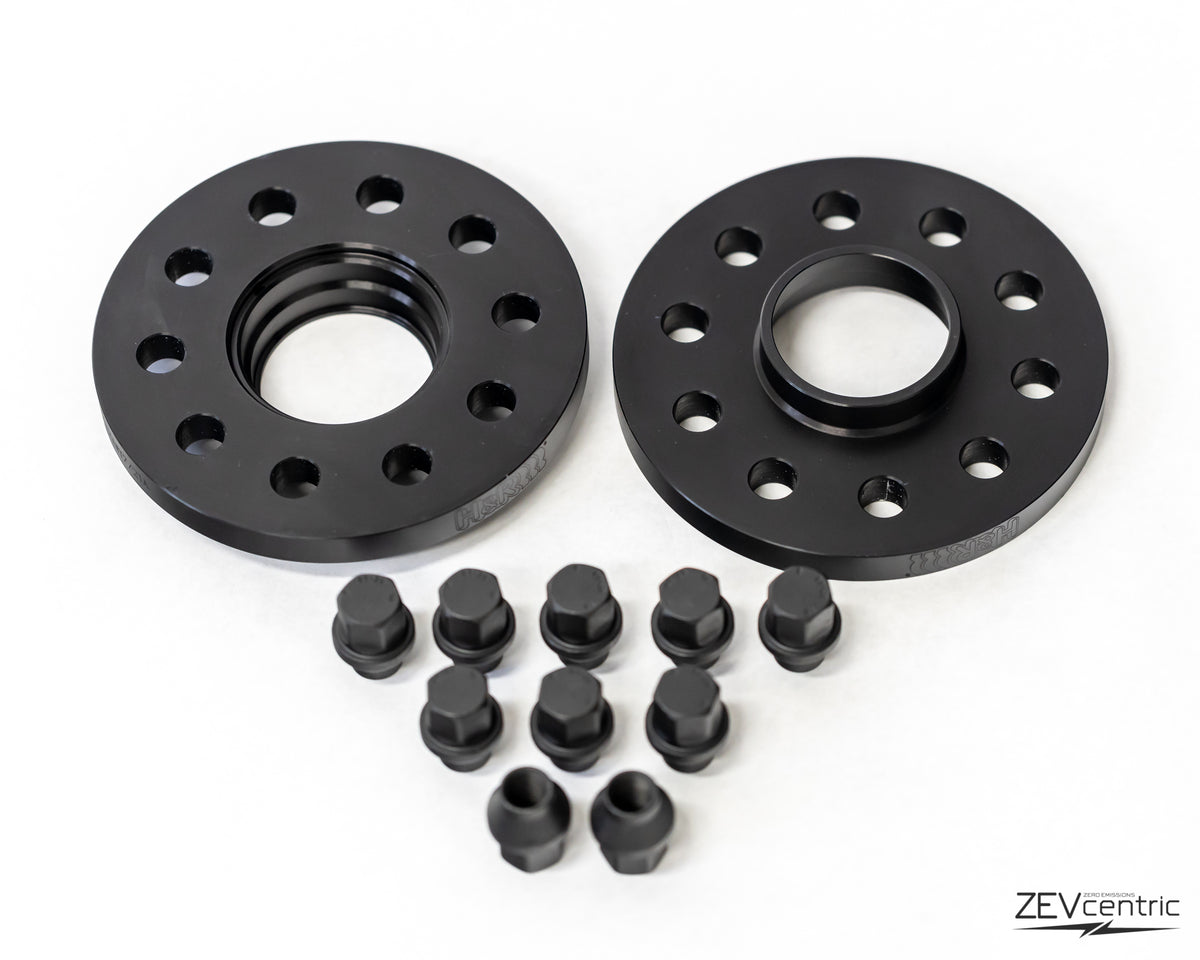

The package uses ASPIRA or H&R spacers according to the selected configuration. H&R spacers require the supplied lug nuts.
Fitment considerations
Ride height also affects final clearance. Select the exact brake/rotor configuration above, and tell ZEVcentric whether the vehicle is lowered before fulfillment.
Installation notes
Professional installation is recommended. Confirm wheel-to-fender, tire-to-body, suspension, brake, and stud clearance through the full steering and suspension range. Torque the supplied hardware to the manufacturer’s specification and recheck it after the initial driving interval.
