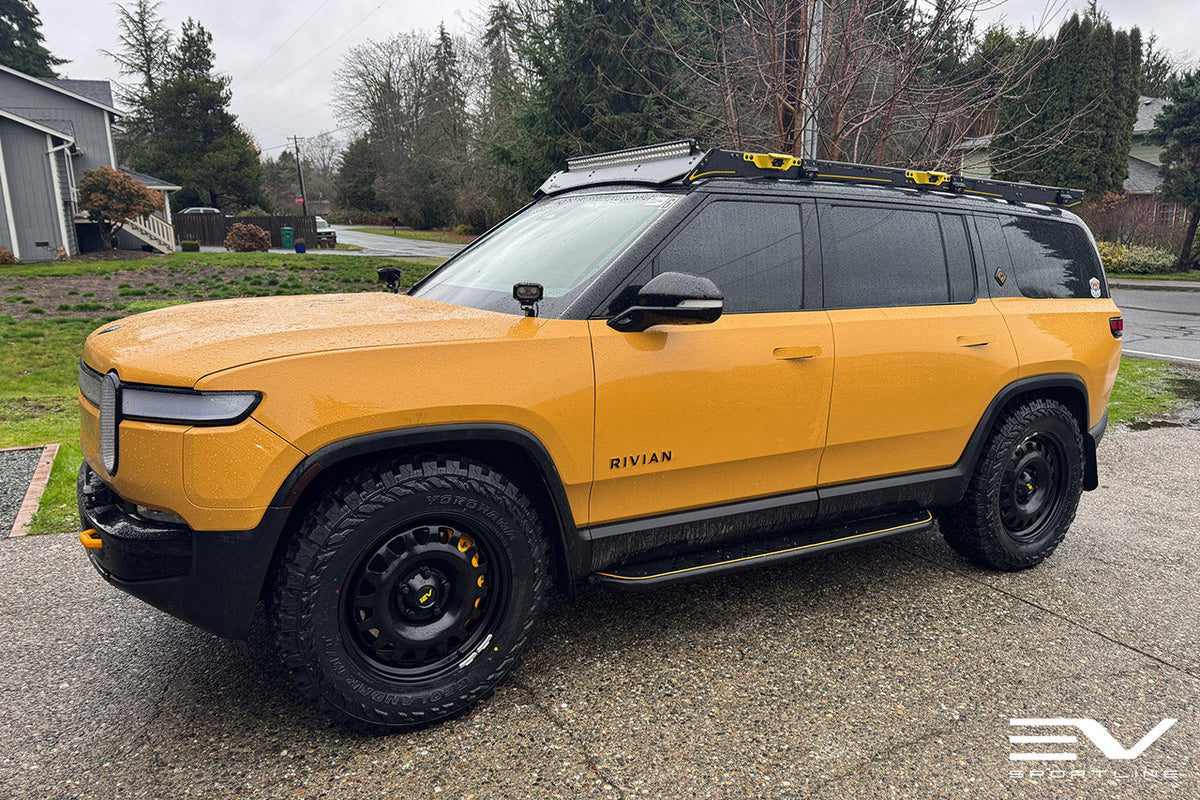

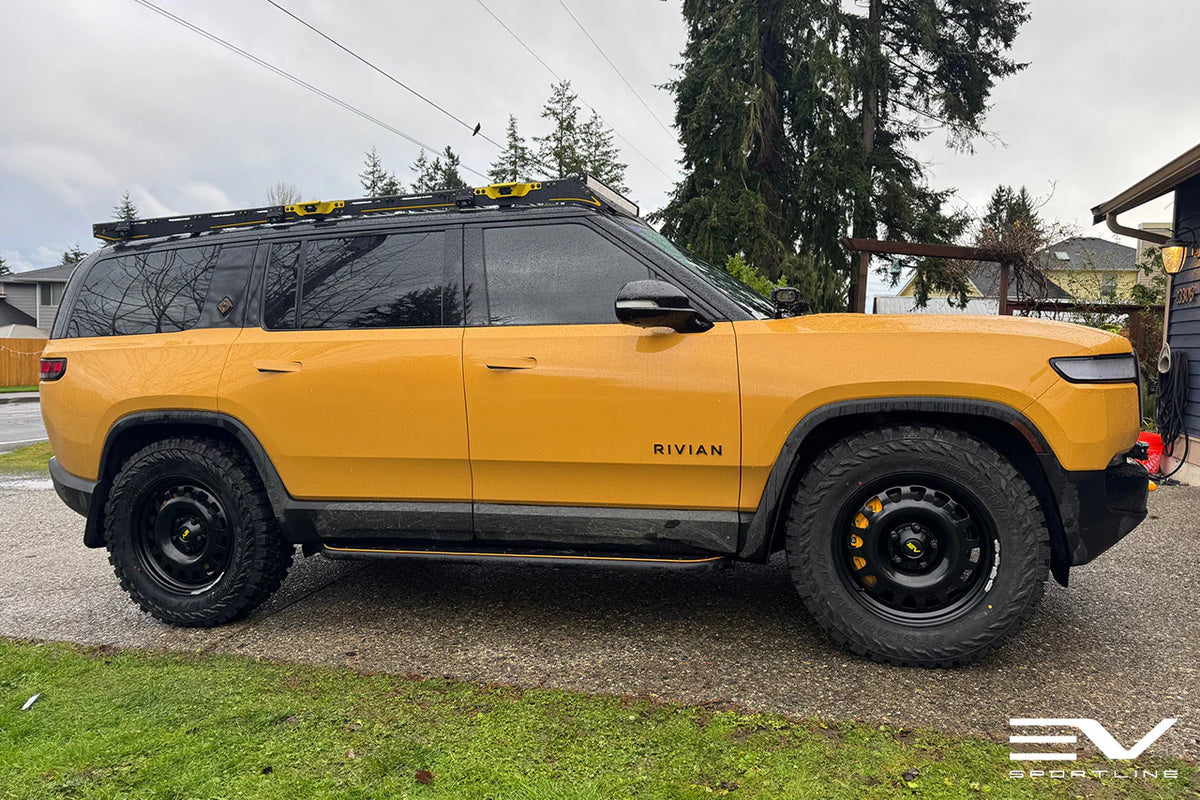

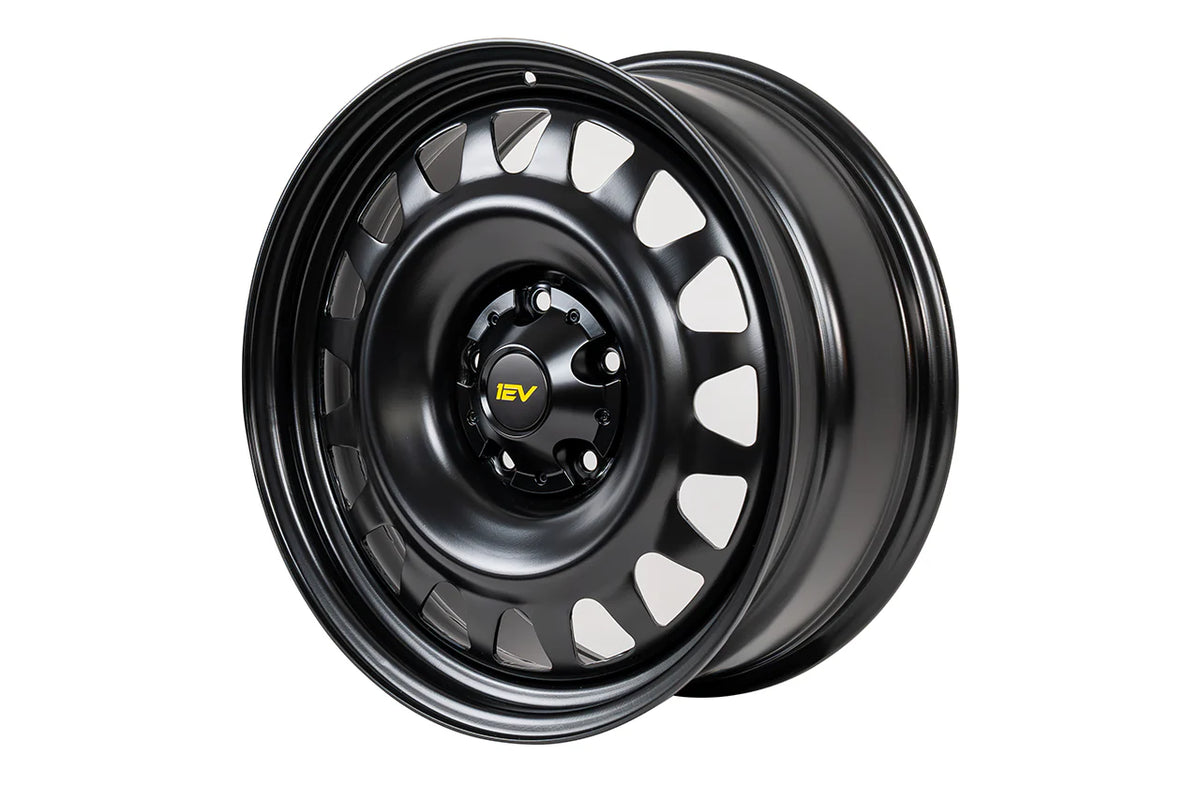

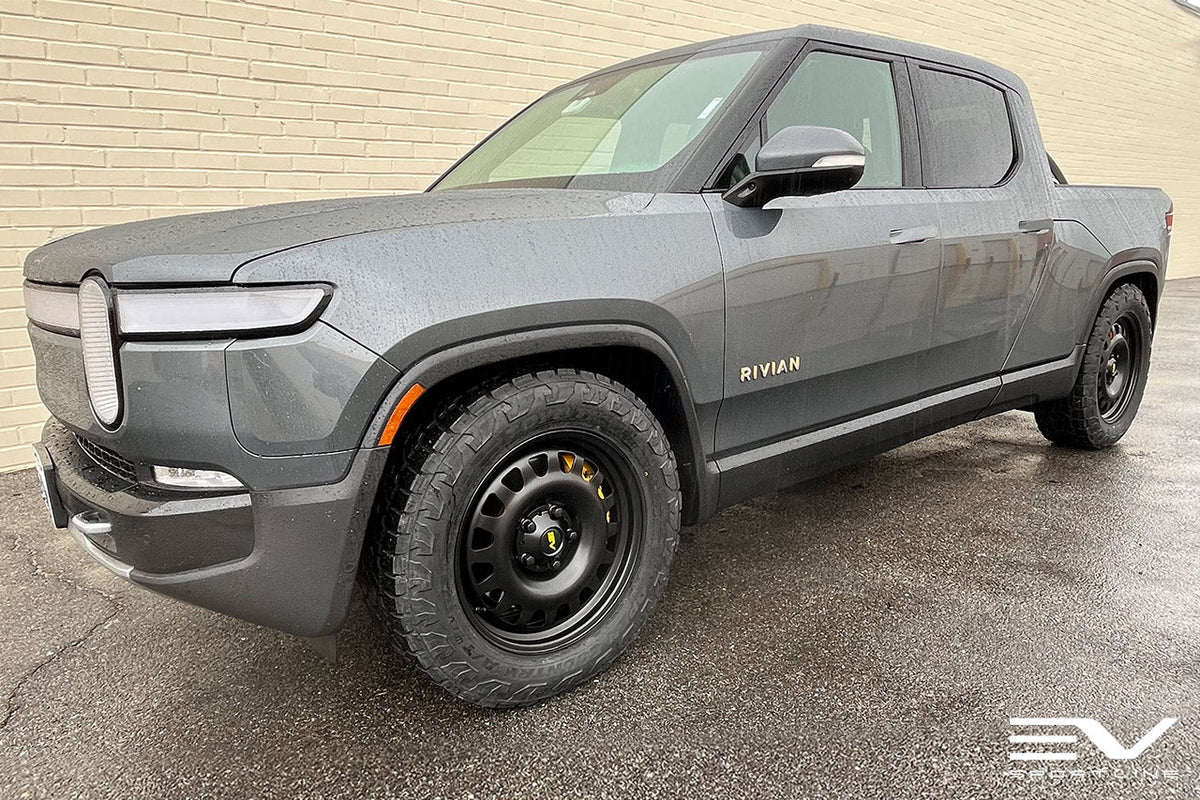

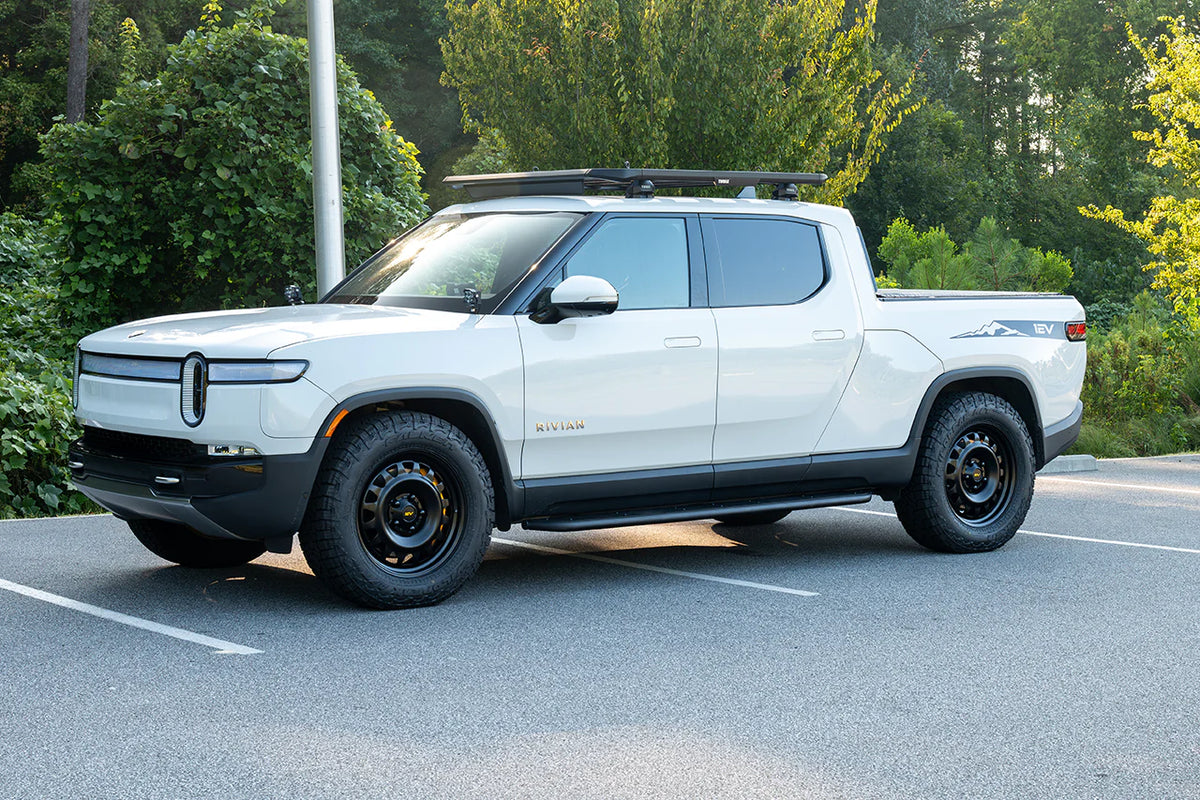

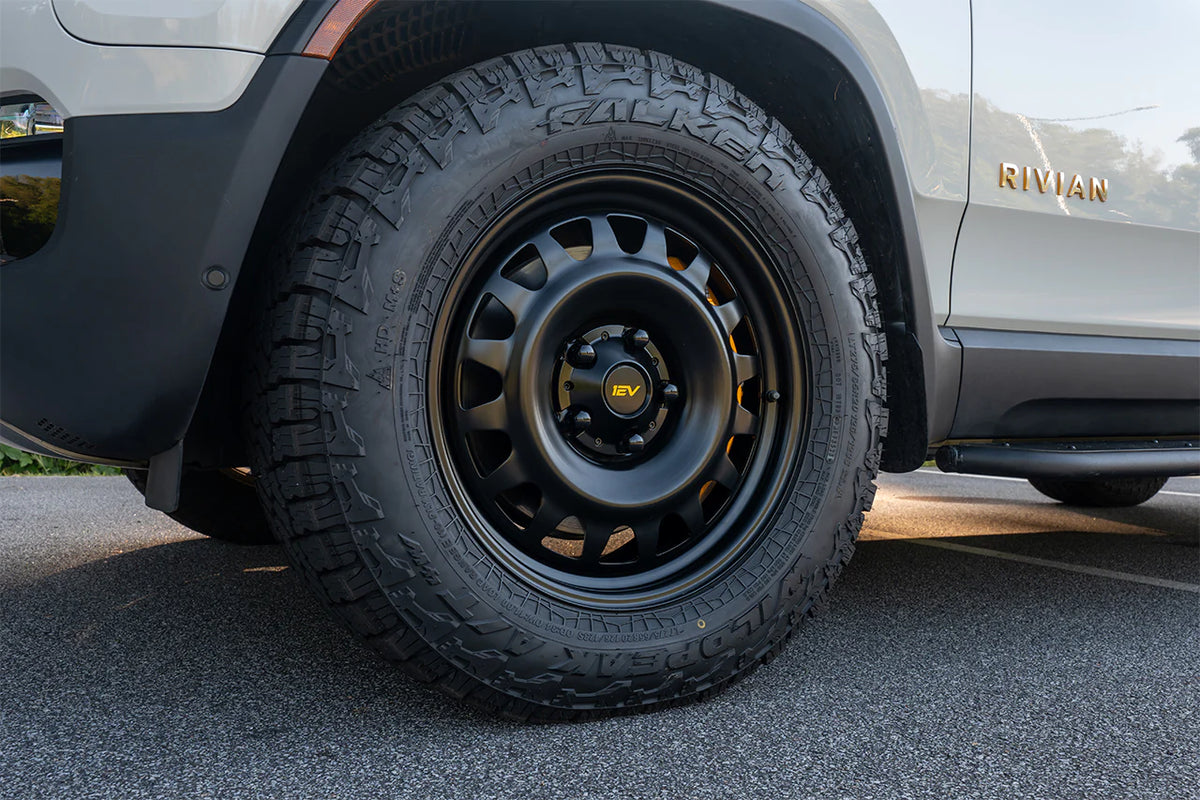

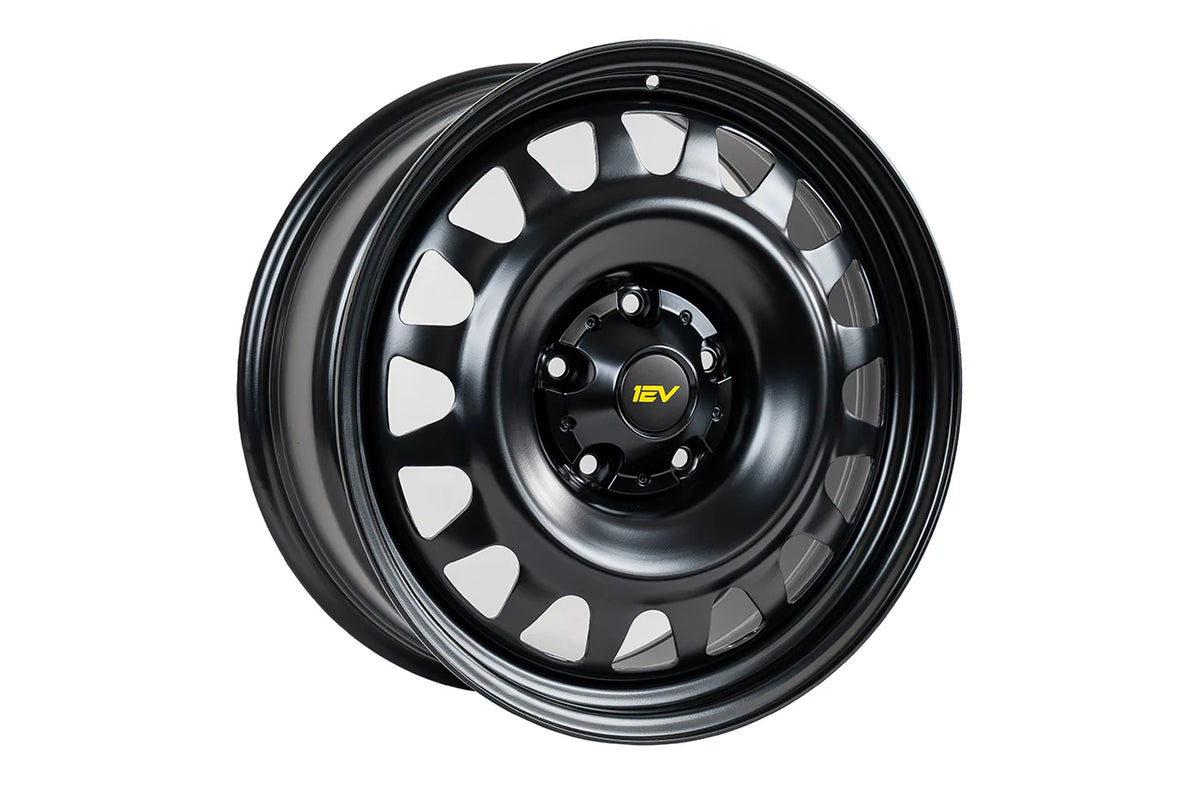

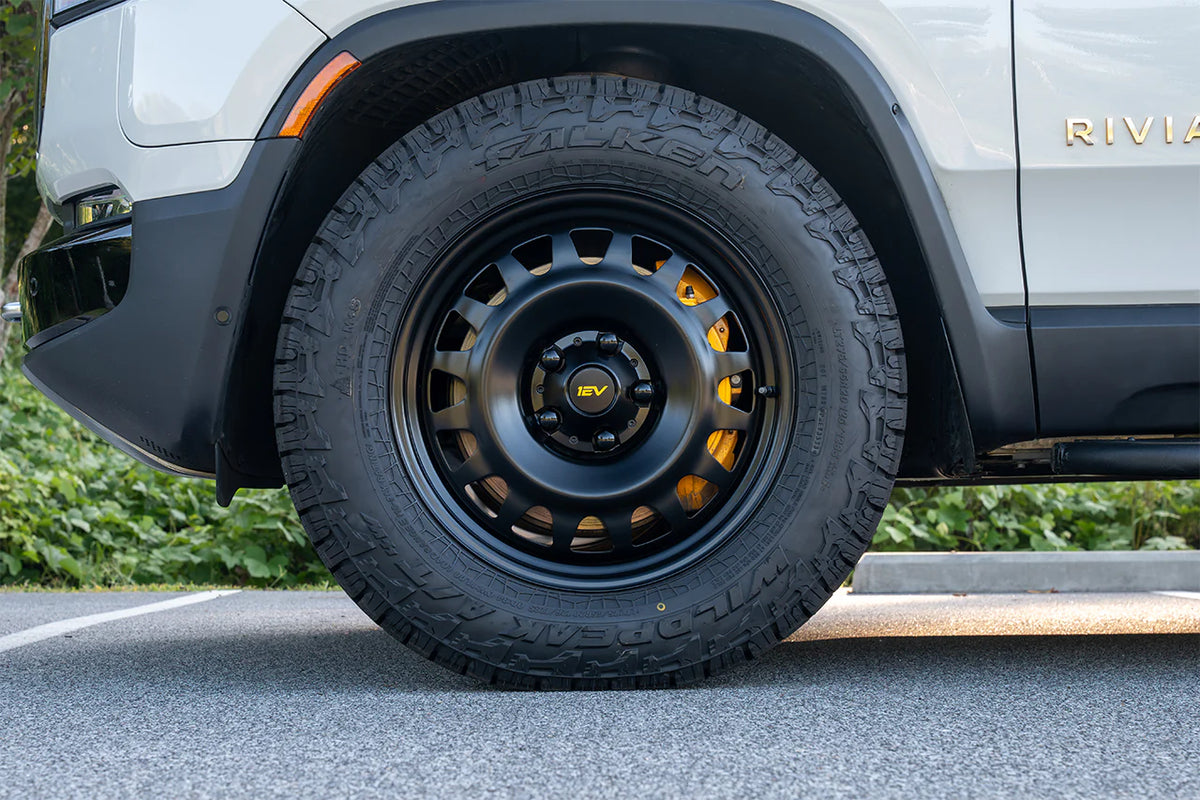

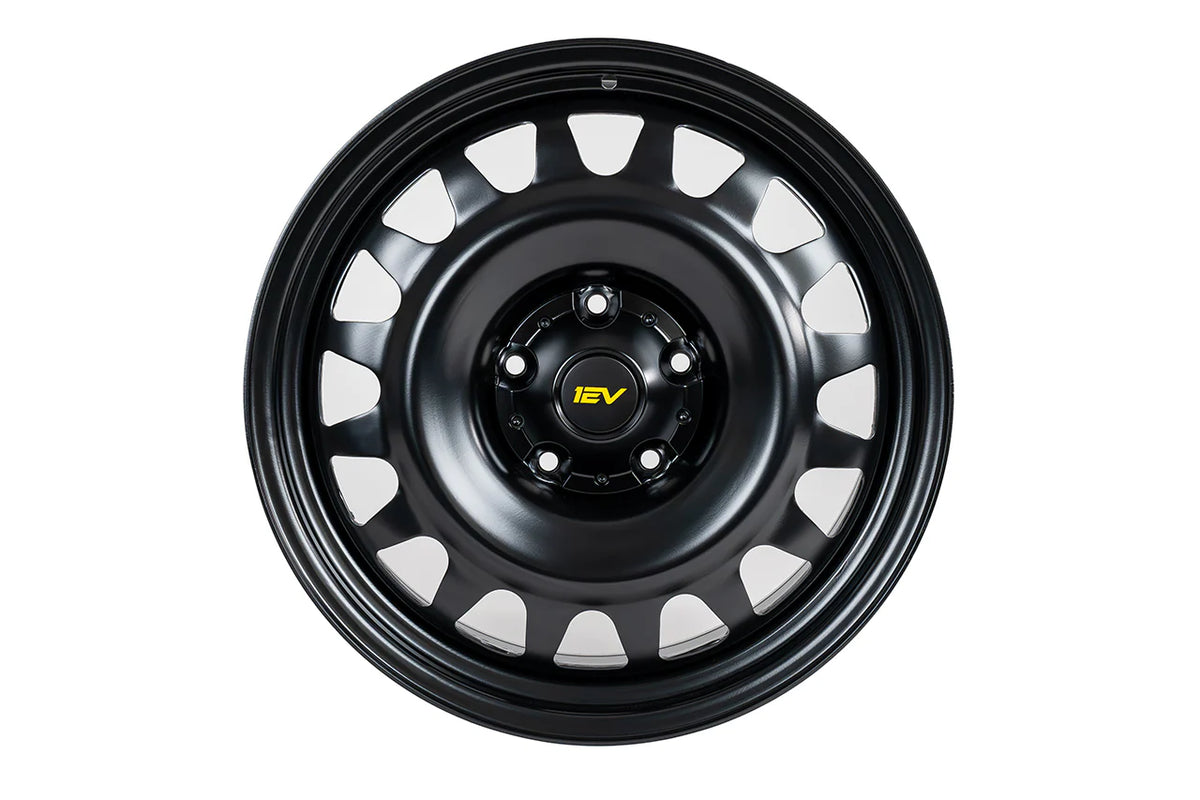

Equip a Rivian R1T or R1S with the Team 1EV R1600 20-inch steel wheel. Designed around factory Rivian dimensions and hardware compatibility, the R1600 is offered as a four-wheel set, a five-wheel rotation/spare package, or a single spare.
Available quantities
- Four wheels: complete vehicle set
- Five wheels: adds a matching wheel for rotation and spare use
- One wheel: matching spare that can be rotated into regular use
Specifications
- Size: 20 × 8.5 inches, front and rear
- Offset: +48 mm
- Bolt pattern: 5 × 139.7 mm (5 × 5.5 inches)
- Center bore: 64.1 mm
- Construction: forged alloy steel
- Weight: 48 lb per wheel
- Load rating: 1,150 kg / 2,530 lb per wheel
- Recommended tire size: 275/65R20
- Finish: Satin Black
- Bi-directional design suitable for any wheel position
Included and required hardware
- Team 1EV center caps are included
- Designed for factory Rivian lug nuts; lug nuts are not included
- Designed for factory Rivian TPMS sensors; sensors are not included
- Factory Rivian center caps also fit
Fitment
2022–present Rivian R1T and R1S.
Engineering and use
- FEA tested under a 3,400 lbf load
- Manufactured in a TÜV-certified facility
- Suitable for street, off-road, and overlanding use
