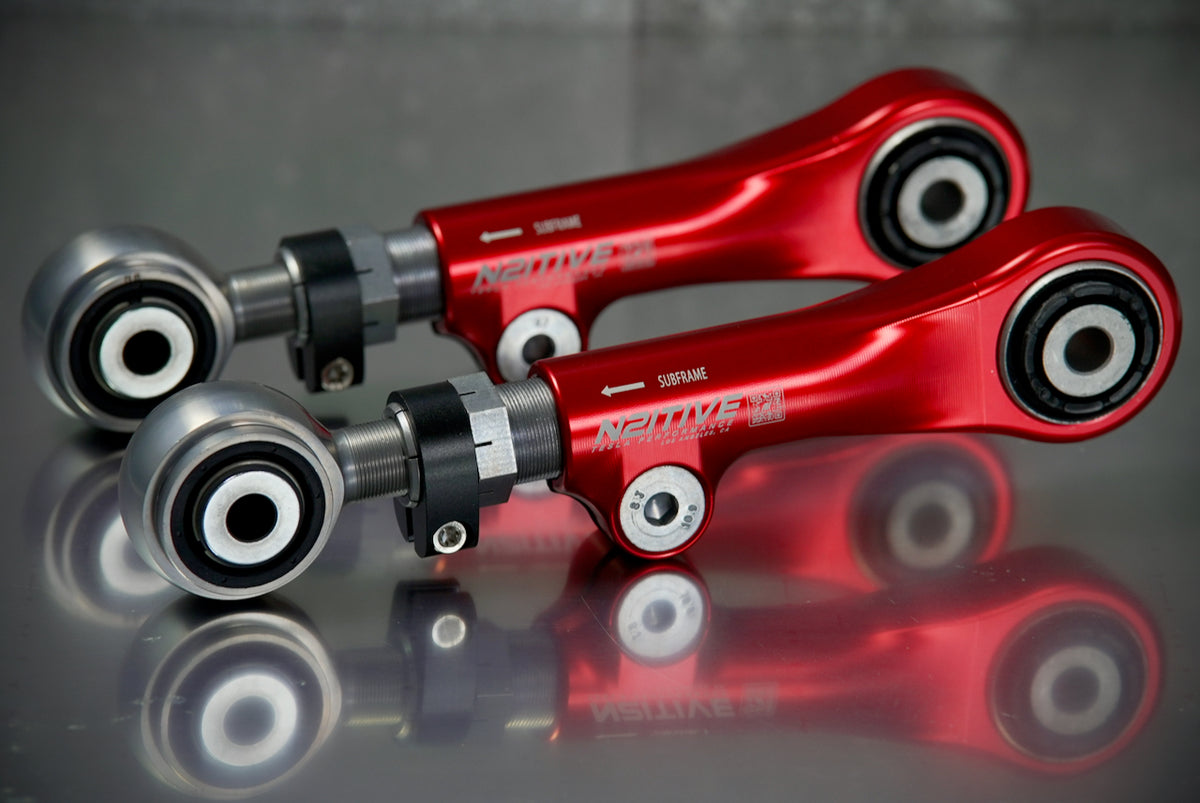

Expand rear-toe adjustment range on 2012–2020 Tesla Model S and Model X vehicles. N2itive TSX-2 adjustable rear toe arms replace the factory toe links and provide the range needed to align lowered, high-mileage, or camber-corrected cars.
Fitment
- 2012–2020 Tesla Model S
- 2012–2020 Tesla Model X
Key features
- Sold as one pair of rear toe arms
- Direct replacement for the factory rear toe links
- Preset to the original arm length for installation
- Approximately five times the factory adjustment range
- Up to 15 mm of toe-in and 15 mm of toe-out adjustment
- Custom spherical and annular bushings
- Grade 10.9 bolts
- Square spacer inserts help prevent alignment drift
- Sealing gaskets help keep out water and contaminants
Available finishes
- Matte clear anodized
- Red and clear anodized
The source warranty language ranges from 6 years to lifetime coverage depending on configuration. Contact ZEVcentric to confirm the warranty that applies to the selected finish before ordering.
Why pair toe and camber adjustment?
Correcting excessive negative rear camber can move toe inward. The TSX-2 arms provide enough additional range to return toe to the desired specification after installing adjustable camber arms.
Installation and alignment
A professional four-wheel alignment is required after installation. Final camber and toe targets should match the vehicle’s ride height, tires, and intended use.
